RPODB Switch

nLight AIR Wireless Wall Switch

By nLight

    DLC Standard / PremiumCA Title 24/JA8
  • Overview
  • Specifications

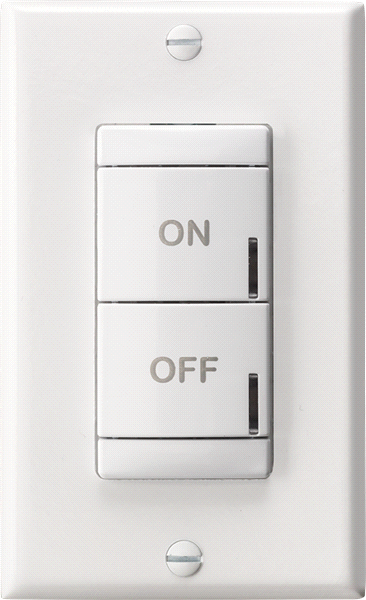

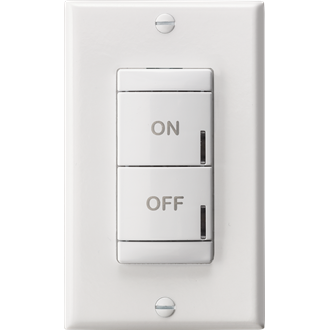

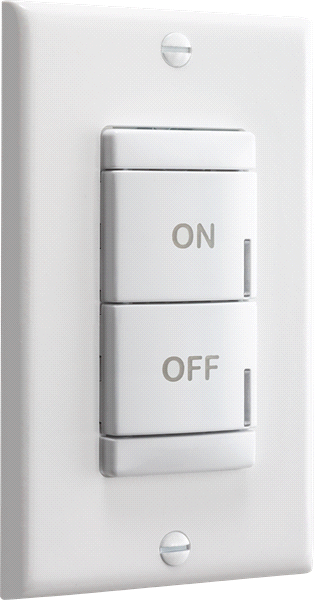

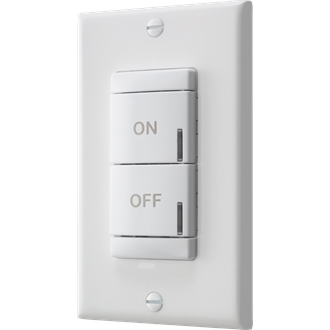

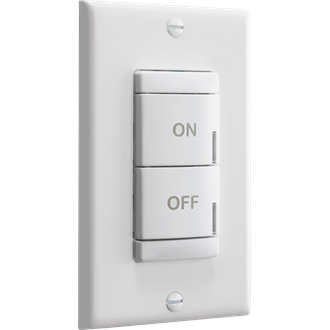

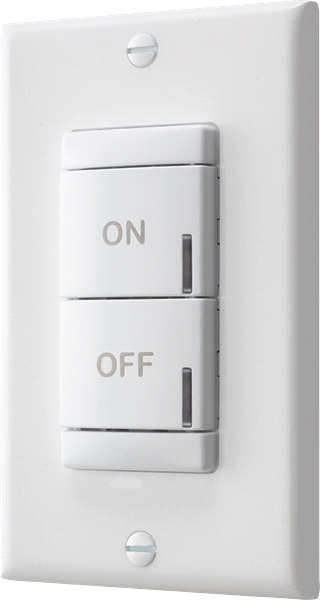

The nLight® AIR rPODB is a wireless, battery-powered wall switch including toggle and/or raise lower features with optional multi-pole control. It provides a user with local control of a lighting zone. A true wire-free switch, these single gang decorator style devices have soft-click buttons, and a green LED indicator for each button. The rPODB wall switches communicate wirelessly with other nLight AIR devices.

A battery-powered wall switch can work with any nLight AIR enabled fixture or power pack to provide toggle switch operation. Wall switches with the DX option have a raise/lower ability to adjust the level of any nLight AIR controlled dimmable light fixture. With optional 2 or 4 scene switches, a customized scene can be created for groups of fixtures to quickly and easily control the lights to desired levels in the space.

As part of the nLight AIR wireless controls family, the rPODB switch uses a 900MHz communication frequency that easily penetrates obstructions, and its five-tier security architecture helps building owners and occupants rest easy.

To learn more about nLight AIR wireless controls please contact your local lighting representative or visit the nLight AIR systems page.


Intended Use:

Renovation projects for commercial office, education, healthcare, municipalities, and retail.


Features:

•Powered with three off-the-shelf preinstalled AAA Lithium size batteries and rated for 10 years of normal use, minimizing battery replacement (battery replacement with alkaline batteries does not guarantee a 10-year run time.)

• Communicates wirelessly with nLight® AIR devices via radio frequency (RF) in the 900MHz spectrum

• Soft-click push-button control

• Custom button engraving at no charge (WH, IV, AL GY units only)

• 1 or 2 on/off, 1 or 2 raise/lower, and 2 or 4 scene buttons

• Easy integration with the nLight ECLYPSE® via nLight AIR adapter for more advanced control strategies like time-based scheduling, demand response and to connect with BACnet™, cloud-based applications, and remote-control capabilities

• Robust five-tier security architecture delivers peace of mind for building owners, managers, and IT departments

• CLAIRITY™+ mobile application configuration makes configuration easy - no specialized tools or software to learn

Read More
Read Less
Battery Powered Yes
Control Device Type Dimming Switch
Mounting Type Surface
Networkable Control Networkable Control
Product Type Switch
Color Gray, Ivory, Light Almond, White
Finish Gloss
Voltage Low Voltage
Compliance Listing CA Title 24, DLC Standard, ROHS
Regulatory Listing UL
Series RPODB
Application Type Education, Government, Healthcare, Hospitality, House of Worship, Offices & Banks, Retail, Retrofit

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET CLAIRITY Pro Mobile Application Spec Sheet.pdf Specification Sheet 1/3/2020 View
    SPEC SHEET Clairity Pro Mobile Application.pdf Mobile App for nLight® AIR Startups 1/3/2020 View
    SPEC SHEET rPODB xS.pdf nLight® AIR rPODB xS - Battery powered, preset scene Wall Switch 5/5/2022 View
    SPEC SHEET rPODB.pdf nLight® AIR rPODB – Battery powered, Wall Switch 5/5/2022 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    2D Model rpodb2sdxg2.dwg rpodb2sdxg2.dwg 5/16/2019
    Installation Instructions RPODB_912-0018-003.pdf rPODB Installation Instructions 5/18/2021 View
    User Manual CLAIRITY PRO Quick Start Guide.pdf CLAIRITY PRO Quick Start Guide 1/21/2020 View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    FAQ nLight AIR FAQs FINAL.pdf nLight AIR FAQ View
    FAQ nLight Air Flyer_FINAL.pdf nLight AIR FAQ View
    Sell Sheet Lighting Controls Device Cleaning.pdf Lighting Controls Device Cleaning Recommendations: SensorSwitch™, nLight®, and Fresco™ 1/12/2022 View
    Sell Sheet nLight Air Sell Sheet FINAL.pdf nLight AIR Sell Sheet View
