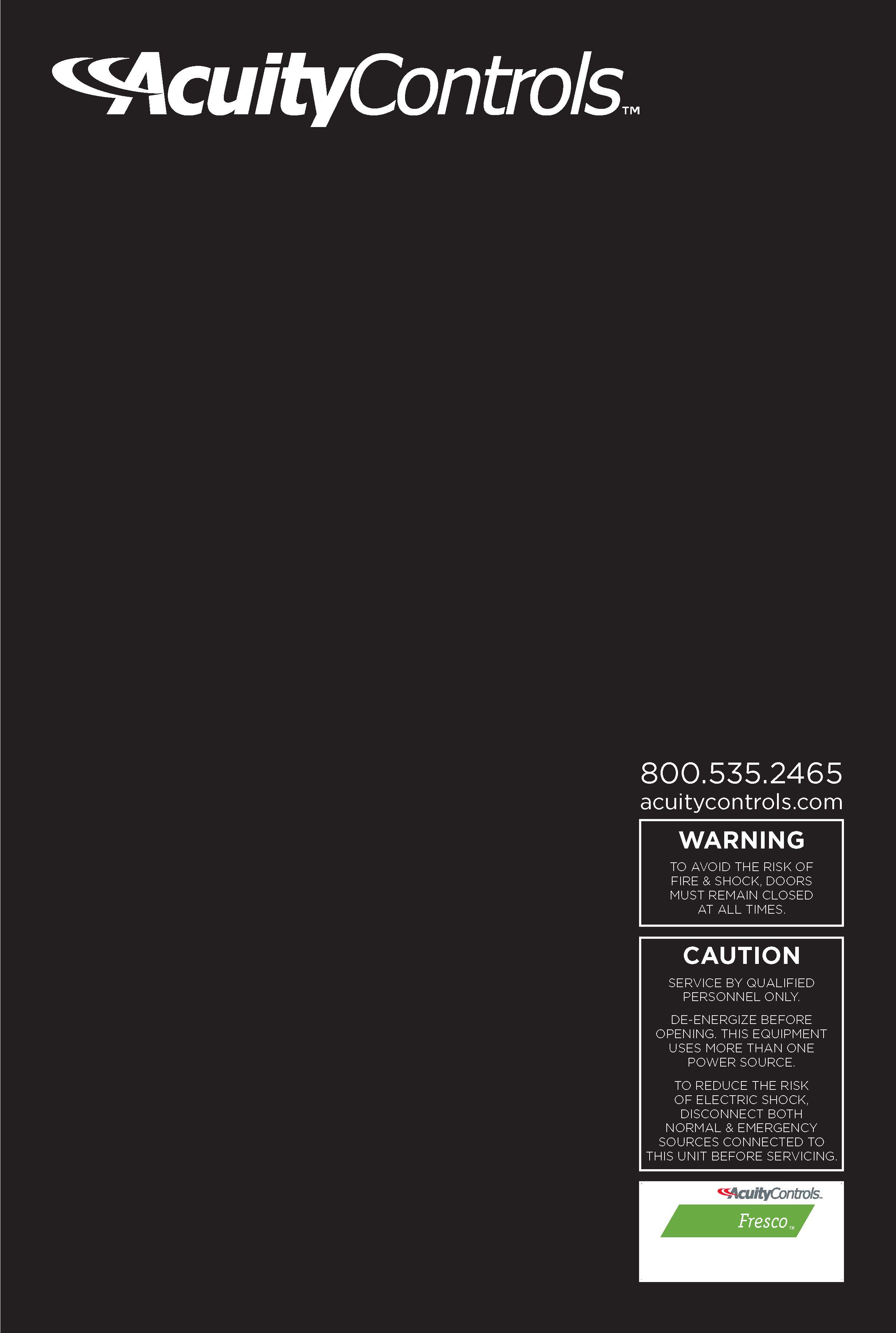

SilkScreen Artwork- Fresco DXT LPDD (with label).jpg
CloseSilkScreen Artwork- Fresco DXT LPDD (with label).jpg
SilkScreen Artwork- Fresco DXT LPDD (with label).jpg

Fresco™ DXT LPDD

Lighting Control Panel

by Fresco

The DXT LPDD lighting control panels provide unified DMX512 control of 0-10VDC outputs and relay switching in a single enclosure. Intended for use with LED drivers requiring mains switching and 0-10V dimming, and for electronic fluorescent ballasts. The interface provides single DMX512 channel control over the relay and analog output pairs, or allows separate DMX control of relays and analog outputs. The interface also provides full non-sequential DMX soft-patch for maximum flexibility.
• Eight or sixteen normally-closed (NC) single-pole latching relays • Sixteen analog 0-10V outputs • Easy, front panel configuration • LED indicators for Power, DMX IN, processor and relay state • Adjustable DMX start address, or each output may be assigned a non-sequential DMX address • Analog outputs may be paired with relays for unified single DMX channel control, or control of relays and analog output may be split by assigning different DMX addresses to each • Outputs may be patched to Auxiliary Input dry contact inputs • User-settable relay trigger thresholds • Test features include on-board relay test and review of incoming • DMX levels, on a channel-by-channel basis • DMX thru connector and termination switch • Discoverable and configurable using RDM
  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & BIM

    • Request BIM Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: your request will be routed to the BIM Design team. If escalation/questions is needed please email BIM@acuitybrands.com.
  • Specifications

    Application Type Education|Government|Healthcare|Hospitality|Offices & Banks|Religious|Retail
    Brand Fresco
    Control Networkable Control
    Environment Indoor
    Listings ETL|UL
    Product Type Panel
    Series DXT
