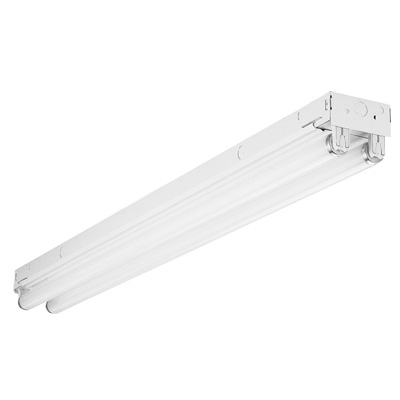

General-Purpose Channels

by Lithonia Lighting

For applications that require good illumination levels. Suitable for general purpose applications.


Construction

Steel channel (standard) with high-gloss, baked polyester finish.

Combination end plates/channel connector furnished for either unit-mounted or continuous-row application.

Channel cover retained by quarter-turn fastener.

Optional aluminum channel available, features corrosion-resistant fasteners for use in damp and harsh locations.

White specular reflectors available.

Electrical

Thermally protected, resetting, Class P, UL Listed and CSA Certified ballast is standard. Sound rating depends on lamp/ballast combination.

AWM, TFN, THHN wire used throughout, rated for required temperatures.

Ballast disconnect provided standard where required to comply with U.S. and Canadian electrical codes.

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & BIM

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    • Request BIM Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: your request will be routed to the BIM Design team. If escalation/questions is needed please email BIM@acuitybrands.com.
  • Specifications

    Brand Lithonia Lighting
    Color Beige, Black, Blue, Bronze, Brown, Gray, Green, Ivory, Orange, Purple, Red, Silver, White, Yellow
    Correlated Color Temperature Not Applicable
    Environment Indoor
    Finish Gloss, Polished, Textured
    Light Source Compact Fluorescent, Fluorescent
    Listings UL Damp Location
    Lumen Output Not Applicable
    Mounting Type Surface, Suspended
    Product Type Strip Light
    Series C, TC
    Shape Rectangular
    Voltage Rating 100, 120, 200, 208, 220, 230-240, 236, 240, 250, 277, 347, HVOLT, MVOLT
