L5

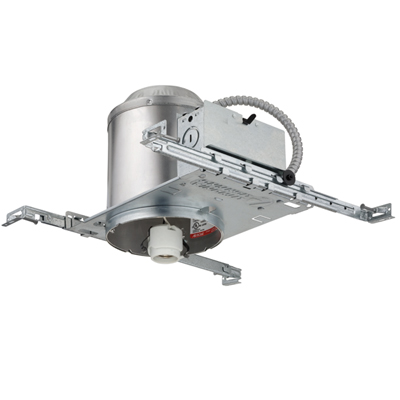

5" Incandescent New Construction Housing

by Lithonia Lighting

Recessed incandescent housings for 2x8 new construction. Approved for direct burial in insulation and all ceiling and wiring types.


Construction

L5: Air-tight, galvanized steel pan with aluminum can and junction box with four built-in ROMEX® clamps and ground wire. Rated for 90°C. Factory-installed captive bar hangers that span up to 24 o.c. and feature stepped shank nail with integral T-bar locks. Two locking screws hold fixture position. Socket clips to trim to ensure proper and consistent lamp position.

Trim retention (clips): Retaining clips riveted to top of reflector hold trim inside housing.

Trim retention (TOR): Two side-mounted torsion springs on the trim and two receiving brackets in the can, ensure a consistently tight fit with the ceiling.

Suitable for ceilings up to 1-1/2" thick.

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View Download
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View Download
  • Photometry & BIM

    • Request BIM Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: your request will be routed to the BIM Design team. If escalation/questions is needed please email BIM@acuitybrands.com.
  • Specifications

    Size 5 IN
    Brand Lithonia Lighting
    Color Black, Bronze, Clear, Nickel, White
    Correlated Color Temperature 2700 K, 3000 K, 4000 K, Not Applicable
    Environment Indoor
    Finish Antique, Brushed, Diffuse, Gloss, Matte, Not Applicable, Oil Rubbed, Specular
    Light Source Halogen, Incandescent, LED - Static, Not Applicable
    Listings cUL, ENERGY STAR®, IC, Non-IC, Not Applicable, UL Damp Location
    Lumen Output 1100 LM, Not Applicable
    Mounting Type Recessed
    Product Type Downlight
    Series L5
    Shape Round
    Voltage Rating 120, Not Applicable
