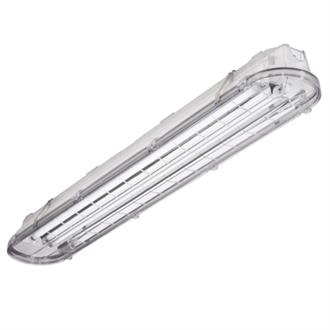

ARCHWAY™ PASSAGE™ Parking Garage

by Lithonia Lighting

Ideal for use in applications where smart, energy-efficient fixtures are desired. Typical applications include, parking garage, canopy, transportation, school, hospital and exterior retail environments where moisture or dust is a concern. Polycarbonate enclosure protects fixture while remaining easy to service and clean.


Construction

UV-stabilized, injection-molded, impact-resistant, frosted polycarbonate housing with continuous poured-in-place, closed-cell gasket. 20-gauge steel channel and channel cover. Tool-less ballast and wiring access. Fixture design allows for 10-12% uplight.

Optics

UV-stabilized, injection-molded, impact-resistant, clear transparent, polycarbonate lens with aesthetic rib detail (.080" thick). Clear transparent, tamper-resistant, polycarbonate latches standard (8 tamper-resistant screws included). Stainless steel latches also available. Reflectors are precision-formed, high-performance, segmented optics utilizing premium specular aluminum and optimized for both 1- and 2-lamp configurations. Provides 95% reflectivity and warranted for 25 years.

Electrical

Ballasts: Thermally protected, resetting, Class P, HPF, Sound Rating A+. 90°C rated Advance Cool Running™ ballast standard for T5HO. T8 ballast starting temperature is -18°C (0°F) and T5HO starting temperature is -29°C (-20°F).

Lamps: 4100K lamps standard. Secured with rotary locking lampholders for ease of re-lamping and to minimize disconnection due to vibration or incidental contact.

Installation

Stainless steel surface spring-mounting brackets standard (2 included). A variety of stainless steel mounting options available: surface conduit entry on each end and on top, j-box mounting and mounting brackets for suspension with aircraft cable (cable not included). Optional stainless steel V-hooks available for chain hanging (chain not included).

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & BIM

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    • Request BIM Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: your request will be routed to the BIM Design team. If escalation/questions is needed please email BIM@acuitybrands.com.
  • Specifications

    Brand Lithonia Lighting
    Color Clear
    Control Networkable Control, Occupancy Sensor, Photocontrol (Outdoor)
    Environment Indoor
    Light Source Fluorescent, Not Applicable
    Listings CSA Wet Location
    Mounting Type Surface, Suspended
    Product Type Linear
    Series VAP
    Voltage Rating 120, 208, 240, 277, 347, 480, HVOLT, MVOLT
