6" Shallow Incandescent MRI New Construction Housing

By Lithonia Lighting

  • Overview
  • Specifications

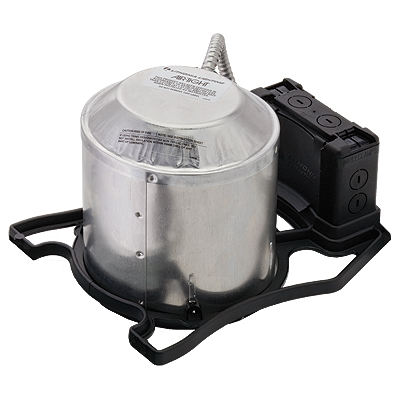

Recessed housing rated IC for new construction or remodel applications. Approved for all ceiling types except air-handling plenums. Suitable for installation in rooms containing magnetic resonance imaging equipment. No significant ferrous material contained in fixture.


Construction

Aluminum housing. Engineering grade thermoplastic frame and junction box with four built-in ROMEX® clamps; five 7/8" knockouts with slots for pryout. Rated for 90°C. Ground wire provided. Pre-assembled poke-home connectors for ease of wiring. Tilt-up captive J-box doors for easy access.

Trim retention (clips): Retaining clips riveted to top of reflector hold trim inside housing.

Trim retention (TOR option): Two side-mounted torsion springs on the trim and two receiving brackets in the can, ensure a consistently tight fit with the ceiling.

Maximum ceiling thickness 1-1/2".

Electrical

Durable medium base porcelain socket with nickel-plated copper alloy screw shell and contact. Socket attaches to reflector to ensure proper and consistent lamp position. Thermal protection provided against improper lamp usage. Suitable for use with 120V DC or AC.

Read More
Read Less
Size 6 IN
Shape Round
Light Source Incandescent
Product Type Downlight
Environmental Listing ASTM Airtight
Regulatory Listing CSA, cUL, UL
Voltage Rating 120
Color White
Mounting Type Recessed
Series LCP
