L7XR

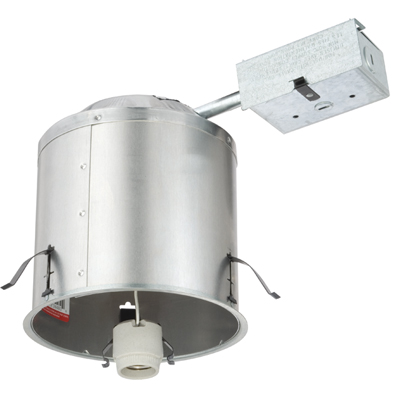

6" Incandescent Remodel Housing

by Lithonia Lighting

Recessed incandescent housings for 2x8 remodel construction. Approved for direct burial in insulation and all ceiling and wiring types.


Construction

L7XR: Air-tight aluminum housing with heavy-gauge galvanized steel raceway arm. Remodel clips for installation in existing plaster, sheet rock or mechanical ceilings. Galvanized steel junction box with three built-in ROMEX® clamps and ground wire. Not suitable for pulling wires. Rated for 90°C. Socket clips to trim to ensure proper and consistent lamp position.

Trim retention (clips): Retaining clips riveted to top of reflector hold trim inside housing.

Trim retention (TOR): Two side-mounted torsion springs on the trim and two receiving brackets in the can, ensure a consistently tight fit with the ceiling.

Suitable for ceilings up to 1-1/2" thick.

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & BIM

    • Request BIM Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: your request will be routed to the BIM Design team. If escalation/questions is needed please email BIM@acuitybrands.com.
  • Specifications

    Size 6 IN
    Brand Lithonia Lighting
    Correlated Color Temperature Not Applicable
    Environment Indoor
    Light Source Halogen, Incandescent, LED - Static
    Listings cUL, IC, Non-IC
    Mounting Type Recessed
    Product Type Downlight
    Series L7XR
    Shape Round
    Voltage Rating 120
