L7XPR

6" Shallow Incandescent Remodel Housing

By Lithonia Lighting

  • Overview
  • Specifications

Recessed incandescent housings for 2x6 remodel construction. Approved for direct burial in insulation and all ceiling and wiring types.


Construction

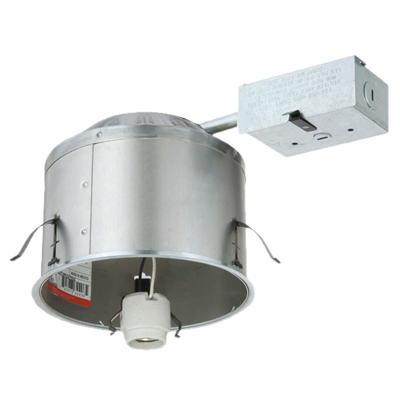

L7XPR: Air-tight aluminum housing with heavy-gauge galvanized steel raceway arm. Remodel clips for installation in existing plaster, sheet rock or mechanical ceilings. Galvanized steel junction box with three built-in ROMEX® clamps and ground wire. Not suitable for pulling wires. Rated for 90°C. Socket clips to trim to ensure proper and consistent lamp position.

Trim retention (clips): Retaining clips riveted to top of reflector hold trim inside housing.

Trim retention (TOR): Two side-mounted torsion springs on the trim and two receiving brackets in the can, ensure a consistently tight fit with the ceiling.

Suitable for ceilings up to 1-1/2" thick.

Read More
Read Less
Size 6 IN
Shape Round
Light Source Incandescent, LED - Static
Product Type Housing
Regulatory Listing CSA, cUL, UL
Voltage Rating 120
Mounting Type Recessed
Series L7XPR
  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET 6" Shallow Incandescent Remodel Housing 6" Shallow Incandescent Remodel Housing View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions L7XR Installation Instruction Sheet Installation Instruction Sheet for L7XR, L7XFR, L7XPR, L5R, L3R, LV3R View
  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet 7 Series Vertical Reflectors 7 Series Vertical Reflectors Replacement Part Spec Sheet View
