L7XP

6" Shallow Incandescent New Construction Housing

By Lithonia Lighting

  • Overview
  • Specifications

Recessed incandescent housings for 2x6 new construction. Approved for direct burial in insulation and all ceiling and wiring types.


Construction

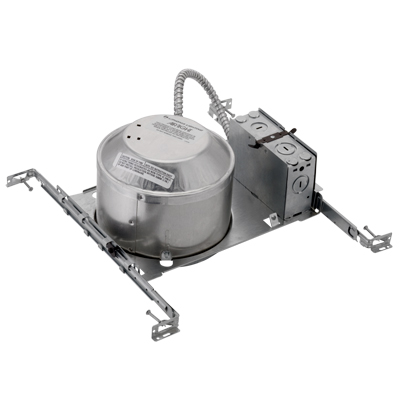

L7XP: Air-tight, galvanized steel pan with aluminum can and junction box with four built-in ROMEX® clamps and ground wire. Rated for 90°C. Factory-installed captive bar hangers that span up to 24 o.c. and feature stepped shank nail with integral T-bar locks. Two locking screws hold fixture position. Socket clips to trim to ensure proper and consistent lamp position.

Trim retention (clips): Retaining clips riveted to top of reflector hold trim inside housing.

Trim retention (TOR): Two side-mounted torsion springs on the trim and two receiving brackets in the can, ensure a consistently tight fit with the ceiling.

Suitable for ceilings up to 1-1/2" thick.

Read More
Read Less
Size 6 IN
Shape Round
Light Source Incandescent, LED - Static
Product Type Housing
Regulatory Listing CSA, cUL, UL
Voltage Rating 120
Mounting Type Recessed
Series L7XP
