L7XFR MVOLT

6" Compact Fluorescent Remodel Housing

By Lithonia Lighting

  • Overview
  • Specifications

Recessed housing rated IC or Non-IC for 2x8 remodel applications. Approved for direct burial in insulation.


Construction

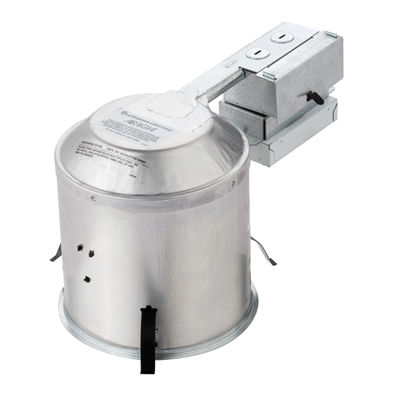

Air-tight aluminum housing with three remodel clips for installation in existing plaster, sheet rock or mechanical ceilings. Heavy-gauge galvanized steel raceway arm. Galvanized steel junction box with four built-in ROMEX® clamps and five 1/2" knockouts with slots for pryout. Not suitable for pulling wires.Rated for 90°C. Ground wire provided. Removable J-box door for easy access.

Trim retention (clips): Retaining clips riveted to top of reflector hold trim inside housing.

Trim retention (TOR): Two side-mounted torsion springs on the trim and two receiving brackets in the can, ensure a consistently tight fit with the ceiling.

Suitable for ceilings up to 1-1/2" thick.

Electrical

Electronic 120V ballast with end of life protection. Class P thermally protected ballast protects against improper contact with insulation.

Socket base: 13W four-pin DTT (G24Q-1), TRT (GX24Q-1); 18W four-pin DTT (G24Q-2), TRT (GX24Q-2); 26W four-pin TRT (GX24Q-3).

Read More
Read Less
Size 6 IN
Shape Round
Light Source Compact Fluorescent
Lumens Not Applicable
CCT / LED Color 3000 K, 3500 K
Product Type Downlight
Environmental Listing IC, Non-IC
Regulatory Listing CSA, cUL, UL
Dimming Protocol 0-10V
Voltage Rating 120
Trim Style Cone, Open
Color Clear
Mounting Type Recessed
Series L7XFR13D, L7XFR13T, L7XFR18D, L7XFR18T, L7XFR26T, L7XFR

Read More Read Less
