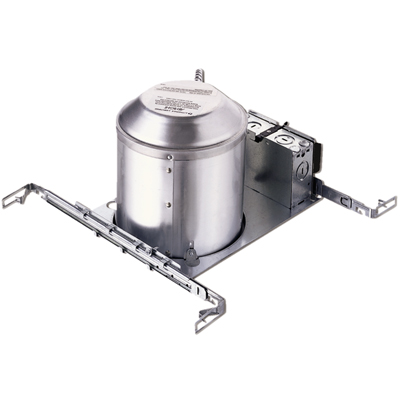

L7XF MVOLT

6" Compact Fluorescent MVOLT New Construction Housing

By Lithonia Lighting

  • Overview
  • Specifications

Recessed housing rated IC and Non-IC. For new construction only. Approved for all ceiling and wiring types. Approved for direct burial in insulation.


Construction

Air-tight standard. Tested to meet current energy codes. Aluminum housing with galvanized steel pan. Factory-installed captive bar hangers that span up to 24 o.c. and feature stepped shank nail with integral T-bar locks. Two locking screws hold fixture in position. Galvanized steel junction box with four built-in ROMEX® clamps; four 1/2" and two 3/4" knockouts with slots for pryout. Rated for 90°C. Ground wire provided. Removable J-box doors for easy access.

Trim retention (clips): Retaining clips riveted to top of reflector hold trim inside housing.

Trim retention (TOR): Two side-mounted torsion springs on the trim and two receiving brackets in the can, ensure a consistently tight fit with the ceiling.

Suitable for ceilings up to 1-1/2" thick.

Electrical

Multi-volt (MVOLT), 120V through 277V, electronic ballast with end of life protection standard with TRT lamps. Requires four-pin lamp. Socket assembly clips to top of housing to prevent paint overspray. Socket attaches to reflector to ensure proper and consistent lamp position. Thermal protection provided against improper lamp usage.

Socket base: 13W four-pin DTT (G24Q-1), TRT (GX24Q-1); 18W four-pin DTT (G24Q-2), TRT (GX24Q-2); 26W four-pin TRT (GX24Q-3).

Read More
Read Less
Size 6 IN
Shape Round
Light Source Compact Fluorescent
Product Type Housing
Regulatory Listing cUL
Dimming Protocol 0-10V
Voltage Rating 120, 120-277, 277
Mounting Type Recessed
Series L7XF
