TWS

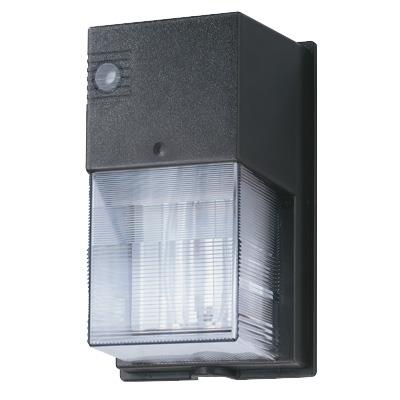

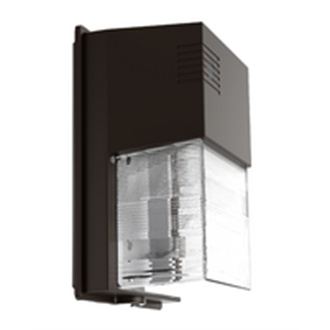

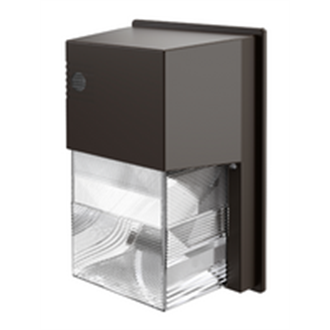

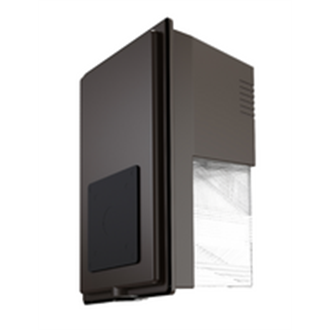

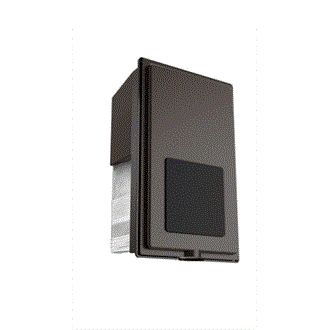

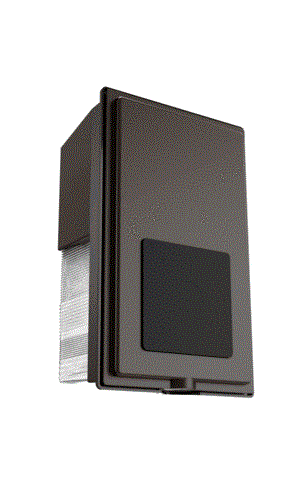

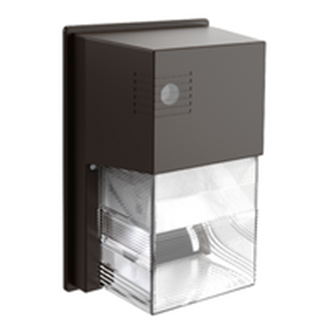

Mini Wall Pack CFL HID Outdoor, Polycarbonate Discontinued

by Lithonia Lighting

This product series is being phased-out.
**Limited product inventory is still available**

Please contact your local sales representative for product options or see the suggested replacement below


For entrances, stairwells, corridors and other pedestrian areas.


Construction

Housing: Cast aluminum backplate on which electrical components are mounted for maximum heat dissipation. Gasketing between backplate and front cover prevents entry of water and contaminants. External hardware includes Phillips head and tamperproof hex-head fasteners. Finish is dark bronze.

Optics

Front cover/refractor is injection-molded, one-piece, UV stabilized polycarbonate. The optical system is sealed and gasketed to inhibit the entrance of outside contaminants.

Electrical

35-70W HPS and 50W MH use a 120V normal power factor ballast, and lamp is included as standard. The 13W compact fluorescent uses a 120V electro-magnetic ballast and includes a twin-tube fluorescent lamp as standard. The 26-42W compact fluorescent uses a multi-volt electronic ballast. Options include 120-277V operation and 26W, 32W or 42W triple-tube fluorescent lamp (not included).

Socket: HID: Medium-base porcelain socket, vertically oriented with copper alloy nickel-plated screw shell and center contact. (UL Listed 660W, 600V). CFL: The 26-42W fluorescent uses a universal 4-pin socket for 26W, 32W or 42W operation based on lamp choice. The 13W fluorescent uses a 2-pin socket.

Installation

Units for wall mounting include two 3/4" knockouts for routing electrical conduit back and bottom.

  • Suggested Replacement Products

    TWS LED

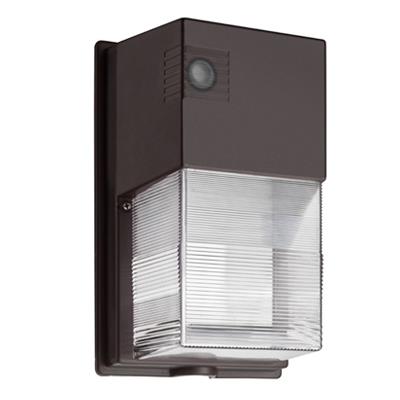

    Mini Wall Pack LED Outdoor, Polycarbonate

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    • Request BIM or IES Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: Your request will be routed to either the BIM or IES team. Thank you.
  • Specifications

    Brand Lithonia Lighting
    Color White
    Control Photocontrol (Outdoor)
    Correlated Color Temperature 2100 K, 3000 K, 3500 K
    Environment Outdoor
    Finish Gloss
    Light Source Compact Fluorescent, HID - High Pressure Sodium
    Regulatory Listing cUL, DLC Standard, UL Wet Location
    Lumen Output 1900 LM, 5600 LM, Not Applicable
    Mounting Type Surface
    Product Type Wallpack
    Series TWS
    Shape Rectangular
    Voltage Rating 120, MVOLT
