TWP

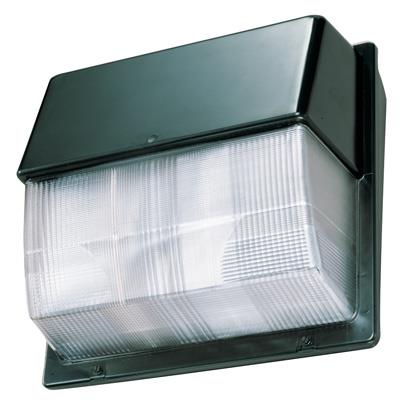

Die-Cast Wall Pack CFL HID Outdoor, Polycarbonate

by Lithonia Lighting

For entrances, loading docks, walkways and vehicle ramps. Not recommended for applications with frequent exposure to harsh chemicals or commercial cleaning fluids (e.g., car washes). Installations in such environments may lead to premature failure of the luminaire and void the warranty.


Construction

Housing: Rear housing is rugged, die-cast aluminum. Corrosion-resistant, captive external hardware includes slotted hex-head and tamperproof fasteners. Finish is dark bronze (DDB) corrosion-resistant polyester powder.

Optics

Reflector is aluminum, finished in white enamel. Front housing and refractor are one-piece, injection-molded, UV-stabilized polycarbonate. Standard finish: front cover has an opaque lower portion and dark bronze painted upper portion; back housing is dark bronze polyester. Refractor is sealed and gasketed to inhibit the entrance of outside contaminants.

Nighttime Friendly™ - Order with full shield (FS) option, vandal resistant polycarbonate front cover, 400W max.

Electrical

Ballast: All ballasts are 100% factory tested. High reactance, high power factor for 150W and below. Constant wattage autotransformer for 175W. MH: 150W and below are standard with pulse-start ignitor technology. CSA, NOM or INTL required for probe start shipments outside the U.S. for 175M. Not available in 175M with SCWA. Compact fluorescent uses an electronic high-frequency ballast.

Socket: Glazed porcelain medium based (mogul based 175W), horizontally oriented with copper alloy, nickel-plated screw shell and center contact. UL Listed 660W, 600V for medium base; 1500W, 600V for mogul base. 4KV pulse rated. Fluorescent is four-pin positive latching thermoplastic. LPI is standard 35K for CFL.

Installation

Top 3/4" threaded wiring access. Back access through 3/4" opening. For feed-thru wiring, use condulet tee (not included). Mount on any flat, non-combustible vertical surface.

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View Download
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View Download
  • Photometry & BIM

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    • Request BIM Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: your request will be routed to the BIM Design team. If escalation/questions is needed please email BIM@acuitybrands.com.
  • Specifications

    Brand Lithonia Lighting
    Color Beige, Black, Bronze, Silver, White
    Control Photocontrol (Outdoor)
    Correlated Color Temperature 2100 K, 3200 K, 3500 K, 4000 K
    Environment Outdoor
    Finish Gloss
    Light Source Compact Fluorescent, HID - Metal Halide
    Listings UL Wet Location
    Lumen Output 1500 LM, 2700 LM, 5500 LM, 6000 LM, 14,000 LM
    Mounting Type Surface
    Product Type Wallpack
    Series TWP
    Shape Rectangular
    Voltage Rating 120, 208, 240, 277, 347, 480, MVOLT
