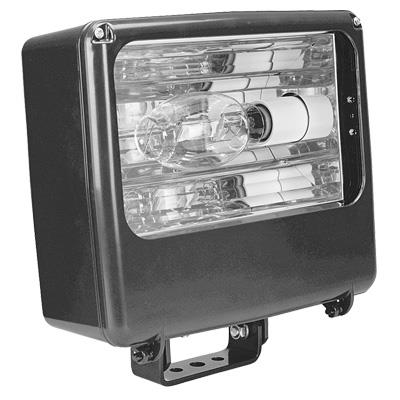

For recreation areas, parking lots, building facades and car lots.
Construction
Housing: Compact, soft-corner, die-cast aluminum housing and front cover. Front bezel is fully sealed with one-piece, bonded silicone gasket. Lens is thermal- and shock-resistant, clear, tempered glass.
Finish: Dark bronze polyester powder finish standard. Additional architectural colors available; see www.lithonia.com/archcolors.
Optics
TA2: vertical lamp with one-piece, hydro-formed, anodized aluminum reflector. Two-position adjustable socket. RA2: Horizontal lamp with anodized specular aluminum reflector. Both have sealed optic chamber to inhibit entrance of outside contaminants.
Electrical
Components mounted to cast-aluminum housing for maximum heat-dissipation. Ballast: All ballasts are 100% factory tested. High reactance, high power factor for 150W and below. Constant wattage autotransformer 175W and above. MH: 150W and below are standard with pulse-start ignitor technology. Super CWA Pulse Start ballasts, 88% efficient and EISA legislation compliant, are required for 151-400W (must order SCWA option) for U.S. shipments only. CSA, NOM or INTL required for probe start shipments outside the U.S.
Socket: Porcelain, vertically or horizontally oriented mogul-base socket with copper alloy, nickel-plated screw shell and center contact. UL Listed 1500W, 600V, 4KV pulse rated.
Installation
Corrosion-resistant, heavy-duty, painted steel yoke. External screws treated for corrosion resistance. Above-horizontal aiming standard.
Shape | Rectangular |
Light Source | HID - High Pressure Sodium, HID - Metal Halide |
Lumens | 27,500 LM, 28,000 LM, 45,000 LM |
CCT / LED Color | 2100 K, 4000 K |
CRI | 21, 22, 65 |
Product Type | Floodlight |
Compliance Listing | BAA |
Regulatory Listing | NOM |
Fixture Wattage | 250, 400 |
Voltage Rating | 120, 120-277, 208, 240, 277, 347, 480 |
Color | Almond, Beige, Black, Blue, Bronze, Gray, Green, Red, Silver, White, Yellow |
Mounting Type | Not Applicable, Tenon Slipfitter |
Series | TFL |
Read More Read Less
Suggested Replacement Products
Spec Sheets
Document Type | Document Title | Description | Updated | View |
|
|
---|---|---|---|---|---|---|
SPEC SHEET | Small flood vertical lamp 150-400 MH & 70-400HPS | Small flood vertical lamp 150-400 MH & 70-400HPS | 3/17/2021 | View |
|
|
Photometry & Revit (BIM)
Description | Report | Design Tools |
|
|
---|---|---|---|---|
{{photometryItem.Catalog}} | Report |
|
|
Spectral Data Sheets
Guideline Specifications
BIM Models (Revit)
Technical Documents (e.g. Instruction Sheets, MSDS, CAD)
Document Type | Document Title | Description | Updated | View |
|
|
---|---|---|---|---|---|---|
Accessories | AFSTM OPTION | Architectural stanchion mount | 6/4/2020 | View |
|
|
Accessories | FTS OPTION | Tenon slipfitter. Converts yoke mount to tenon mount | 11/18/2016 | View |
|
|
Accessories | oa-fl1 | Accessories Floodlights | 7/11/2018 | View |
|
|
Accessories | oa-fl2 | Accessories Floodlights | 7/11/2018 | View |
|
|
Installation Instructions | INST SHT RJ5210026 FLOOD MTG ACCESSORIES | Flood mounting accessory Installation instructions. | 9/12/2014 | View |
|
|
Installation Instructions | INST SHT RJ52100263 FLOOD MTG ACCESSORIES | Flood mounting accessories installation instructions | 9/12/2014 | View |
|
|
Installation Instructions | Installation Instructions | TFL Medium Floodlight Luminaire - Installation Instructions | 11/7/2012 | View |
|
|
Installation Instructions | TFL Accessories Installation Instructions | TFL Medium Floodlight Luminaire - Installation Instructions | 10/27/2015 | View |
|
|
