TFA

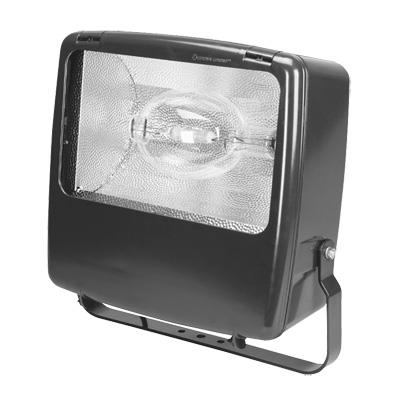

Contour® Large Floodlight HID Outdoor

by Lithonia Lighting

For industrial yards, parking lots, construction sites, streets and recreational areas.


Construction

Housing: Heavy-duty construction. Contoured die-cast aluminum housing and front bezel. Bezel hinged and latched for fast, easy tool-less internal access to optical and electrical compartments. Lens is heavy-duty, thermal- and shock-resistant, clear, tempered glass with no metal-to-glass contact.

Finish: Dark bronze polyester powder finish standard. Additional architectural colors available; see www.lithonia.com/archcolors.

Optics

Computer-designed, precision die-formed, specular anodized aluminum reflector provides high efficiencies. Premium, one-piece silicone gasket seals optical chamber to inhibit entrance of outside contaminants.

Electrical

Electrical components mounted to heavy-gauge plate to maximize heat dissipation and structural integrity. Ballast: All ballasts are 100% factory tested. Constant wattage autotransformer 250W and above. Super CWA Pulse Start ballasts, 88% efficient and EISA legislation compliant, are required for 250-400W (must order SCWA option) for U.S. shipments only. CSA, NOM or INTL required for probe start shipments outside the U.S.

Socket: Porcelain, horizontally or vertically oriented, mogul-base socket with copper alloy, nickel-plated screw shell and center contact. UL Listed 1500W, 600V.

Installation

Tool-less latches on front bezel can be opened while wearing gloves. Corrosion-resistant, painted steel yoke.

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View Download
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View Download
  • Photometry & BIM

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    • Request BIM Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: your request will be routed to the BIM Design team. If escalation/questions is needed please email BIM@acuitybrands.com.
  • Specifications

    Brand Lithonia Lighting
    Color Almond, Beige, Black, Blue, Bronze, Gray, Green, Red, Silver, White, Yellow
    Control Photocontrol (Outdoor)
    Correlated Color Temperature 2100 K, 3700 K, 4000 K
    Environment Indoor, Outdoor
    Finish Gloss, Textured
    Light Source HID - Ceramic Metal Halide, HID - High Pressure Sodium, HID - Metal Halide
    Listings UL
    Lumen Output 22,500 LM, 27,500 LM, 28,000 LM, 45,000 LM
    Mounting Type Not Applicable, Pole Mount, Tenon Slipfitter
    Product Type Floodlight
    Series TFA
    Shape Rectangular
    Voltage Rating 120, 208, 240, 277, 347, 480
