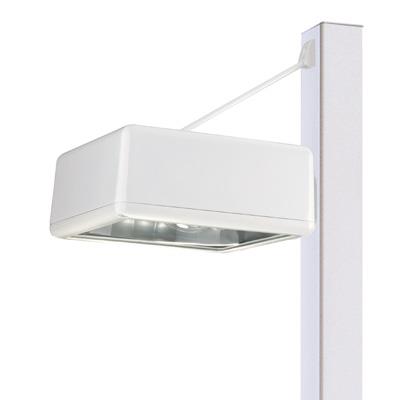

Contour® Soft Square Suspend

by Lithonia Lighting

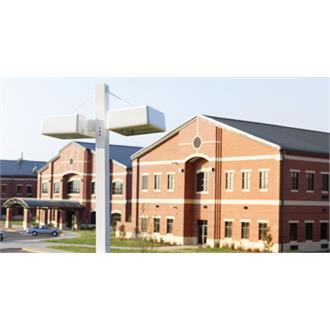

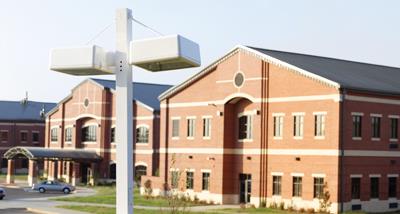

Ideal for parking areas, street lighting, walkways and car lots.


Construction

Rugged, die-cast, soft corner aluminum housing with 0.12" nominal wall thickness. Die-cast doorframe has impact-resistant, tempered, glass lens that is fully gasketed with one piece tubular silicone.

Strut: aluminum tension rod provided as an architectural element. Not designed as a weight-supporting device. Fixture mounts 11.27" lower on the pole.

Finish: Standard finish is dark bronze (DDB)polyester powder finish, with other architectural colors available.

Optics

Anodized, aluminum hydroformed reflectors: IES full cutoff distributions R2(asymmetric), R3 (asymmetric), R4 (forward throw), and R5S (square) are interchangeable. High-performance anodized, segmented aluminum reflectors: IES full cutoff distributions SR2 (asymmetric), SR3 (asymmetric), and SR4SC (forward throw, sharp cutoff). Segmented reflectors attach with tool-less fasteners and are rotatable and interchangeable.

Nighttime Friendly™ - Square die-cast housing, flat lens, 400W max. House side shield available in R2, R3, R4, SR2 and SR3.

Electrical

Ballast: high reactance, high power factor for 70 - 150W. Constant wattage autotransformer for 175 - 400W. Metal halide 150W and below are standard with pulse-start ignitor technology; super CWA pulse-start ballast required for 200W, 320W and 350W (SCWA option). Ballast is copper-wound and 100% factory-tested.

Socket: porcelain, horizontally oriented medium base socket for 70 - 150W and mogul base socket for 175W and above, with copper alloy, nickel-plated screw shell center contact. UL listed 1500W, 600V.

Installation

Mounting: Extruded 4" aluminum arm for square pole mounting, shipped in fixture carton as standard. Optional mountings available.

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & BIM

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    • Request BIM Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: your request will be routed to the BIM Design team. If escalation/questions is needed please email BIM@acuitybrands.com.
  • Specifications

    Brand Lithonia Lighting
    Color Black, Bronze, Silver, White
    Correlated Color Temperature 2100 K, 4000 K
    Environment Outdoor
    Finish Gloss, Textured
    Light Source HID - Ceramic Metal Halide, HID - High Pressure Sodium, HID - Metal Halide
    Listings UL
    Lumen Output 14,000 LM, 22,500 LM, 27,500 LM, 28,000 LM, 45,000 LM
    Mounting Type Not Applicable, Pole Mount
    Product Type Area Light
    Series KADT
    Voltage Rating 120, 208, 240, 277, 347, 480
