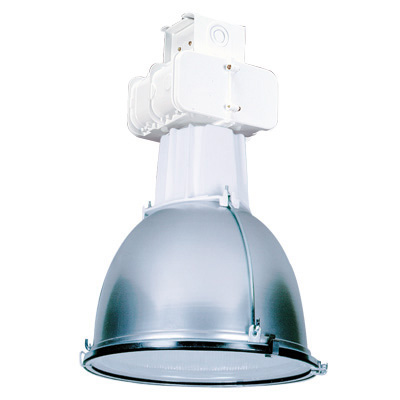

TPGE-A

Premium Enclosed Shrouded Glass Optical

by Lithonia Lighting

For high mounting heights that require high efficiencies, horizontal illumination and premium contrast control. Optimum performance for high ambient temperatures and harsh environments. Ideal for heavy manufacturing areas, warehouses, retail aisles and gymnasiums.


Construction

Housing: Rugged, heavy-duty, die-cast aluminum with white polyester powder finish. Electrical components horizontally opposed and heat-sinked to ballast housing.

Optics

High-efficiency, high-performance, heat-resistant borosilicate glass reflector with aluminum shroud to protect glass prisms from oily dirt accumulation, emphasizing downward efficiency.

Electrical

Ballast: All ballasts are 100% factory tested. HPS: Constant wattage autotransformer. MH: 175-450W fixtures shipped within the U.S. require super CWA pulse start ballasts which are 88% efficient and EISA-legislation compliant (must specify SCWA option). CSA, NOM or INTL options required for probe start shipments outside the U.S. 1000W is constant wattage autotransformer.

Socket: Glazed porcelain, vertically oriented, mogul base socket with copper alloy, nickel-plated screw shell and center contact.

Installation

Cast-aluminum pendant splice box threaded for 3/4" conduit (standard). Other mounting options available.

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View Download
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View Download
  • Photometry & BIM

    • Request BIM Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: your request will be routed to the BIM Design team. If escalation/questions is needed please email BIM@acuitybrands.com.
  • Specifications

    Brand Lithonia Lighting
    Color White
    Environment Indoor
    Finish Gloss
    Light Source HID - High Pressure Sodium, HID - Metal Halide, Not Applicable
    Listings CSA, Not Applicable, UL Damp Location
    Mounting Type Not Applicable
    Product Type High Bay
    Series TPGE
    Shape Round
    Voltage Rating 120, 208, 240, 277, 347, 480
