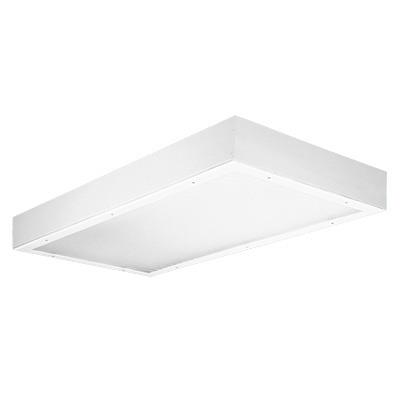

SSH

Surface, Heavy-Duty

by Lithonia Lighting

Suitable for use in contamination-controlled environments ISO5 (Class 100) and ISO6 (Class 1,000) applications, such as electronic assembly, pharmaceutical processing, semiconductor manufacturing, chemical labs, food-processing areas and the medical industry. Certain airborne contaminants can diminish integrity of acrylic. Refer to Acrylic Environmental Compatibility tables for suitable uses.


Construction

Surface models feature seam-welded housing. Completely sealed, one-piece housing is fabricated from 20-gauge cold-rolled steel.

Full door frame is one-piece, 18-gauge CRS featuring triple closed-cell, cross-linked neoprene gasketing between the door, lens and housing.

Optional four-piece inset door also available.

Full 2'x4' door frame secured to housing by 10 stainless steel captive screws, while inset door features four screws.

Optional stainless steel and aluminum housings and door frames available.

Metal parts finished with electrostatically deposited, thermally set polyester powder paint after fabrication.

Installation

Meets requirements for hose-downs up to 200 psi (see Options).

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View Download
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View Download
  • Photometry & BIM

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    • Request BIM Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: your request will be routed to the BIM Design team. If escalation/questions is needed please email BIM@acuitybrands.com.
  • Specifications

    Brand Lithonia Lighting
    Color White
    Correlated Color Temperature Not Applicable
    Environment Indoor
    Finish Gloss
    Light Source Fluorescent
    Listings CSA
    Lumen Output Not Applicable
    Mounting Type Surface
    Product Type Surface Light
    Series 2SSH, SSH
    Shape Rectangular
    Voltage Rating 120, 277, 347, MVOLT
