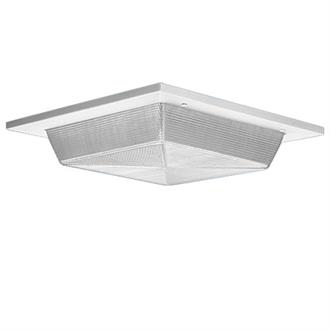

Product Image
1384_large

VRR

Recessed Housing Discontinued

By Lithonia Lighting

  • Overview
  • Specifications

General illumination for rough service (vandal-resistant) applications. Ideal for interior or exterior applications where safety and security are a concern. Certain airborne contaminants can diminish integrity of acrylic. Refer to Acrylic Environmental Compatibility tables for suitable uses.


Construction

Housing: 16-gauge cold-rolled steel finished in white polyester powder coat.

Door: 16-gauge cold-rolled steel door secured by stainless steel tamper-resistant TORX® T-20 or standard stainless steel slotted hex-head screws (four of each included). Finish is white polyester powder coat.

Optics

Lens: UV-stabilized drop dish is clear, prismatic polycarbonate, nominal thickness .125".

Electrical

Ballast: Fluorescent: Electronic, HPF multi-volt, starting temperature of 0°F. (13TT is electromagnetic, 120V only.) High pressure sodium: High reactance, HPF (35S is NPF). 50 – 150W MH ballasts are high reactance, high power factor and are standard with pulse start ignitor technology (SCWA not required). 175M MH is constant- wattage autotransformer (CSA, NOM or INTL required for shipments outside the U.S.). Super CWA (pulse start ballast), 88% efficient and EISA legislation compliant is required for 175W MH (SCWA option) U.S. shipments only. HEB: Metal halide electronic ballast enables operation at any input voltage 120-277V, +/- 10%, 50/60Hz. Ballast is Class P, HPF, <15% THD with starting temperature of -22°F (-30°C).

Socket: Fluorescent: Horizontally mounted thermoplastic. HID: Medium-base porcelain with copper alloy, nickel-plated screw shell and center contact. UL listed 660W, 600V, 4KV pulse rated. 175W metal halide is mogul-base.

Lamps: 35K lamp(s) included for compact fluorescent. Metal halide standard with reduced-UV lamp (except 175M probe start). Included unless L/LP is specified. Ceramic metal halide lamps are recommended for use in application where superior color rendition, lumen maintenance and longer lamp life are desired.

Installation

Separate yoke mounting frame provided with brackets for use with C-channel bar hangers, which are not included.

Read More
Read Less
Shape Square
Light Source Compact Fluorescent, Incandescent
Product Type Canopy
Environmental Listing Wet Location
Regulatory Listing CSA, NOM, UL
Fixture Wattage 13, 18, 26, 32, 42
Voltage Rating 120, 120-277, 277, 347
Color Black, Bronze, White
Mounting Type Recessed
Series VRR
