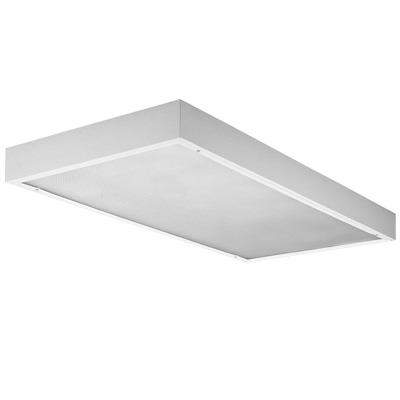

General illumination for rough service (vandal-resistant) applications. Ideal for areas where safety and security are a concern. Certain airborne contaminants can diminish integrity of acrylic. Refer to Acrylic Environmental Compatibility tables for suitable uses.
Construction
Housing: Clean design includes overlap mitered housing and door frame corners. Formed from cold-rolled steel. Housing corners spot-welded for strength.
Door: Flush steel door frame secured by four stainless steel tamper-resistant TORX® T-20 with center pin screws, two per side.
Finish: Painted parts finished with high-gloss, baked white enamel.
Optics
Lens: Variety of shielding available including VL, durable .250" polycarbonate sheet laminated to .125" A12 pattern acrylic overlay. Impact-resistant acrylic or prismatic polycarbonate also available.
Electrical
Ballast: Thermally protected, resetting, Class P, HPF, non-PCB, CSA Certified ballast is standard.
Size | 2FT, 4FT |
Shape | Rectangular |
Light Source | Compact Fluorescent, Fluorescent |
Lumens | Not Applicable |
Product Type | Surface Light |
Environmental Listing | Damp Location, Wet Location |
Regulatory Listing | CSA, NOM |
Fixture Wattage | 17, 28, 32, 40, 54 |
Voltage Rating | 120, 120-277, 277, 347 |
Color | White |
Mounting Type | Surface |
Series | 2VRS, VRS |
Read More Read Less
Suggested Replacement Products
Spec Sheets
Document Type | Document Title | Description | Updated | View |
|
|
---|---|---|---|---|---|---|
SPEC SHEET | To be printed with all products containing acrylic material | To be printed with all products containing acrylic material | 7/26/2011 | View |
|
|
SPEC SHEET | 1'x4', impact-resistant lens, T8 or T12 lamps (Discontinued) | 1'x4', impact-resistant lens, T8 or T12 lamps | 2/24/2011 | View |
|
|
SPEC SHEET | 2'x4', impact-resistant lens, T8 or T12 lamps (Discontinued) | 2'x4', impact-resistant lens, T8 or T12 lamps | 2/24/2011 | View |
|
|
SPEC SHEET | VRS-2x2-F (Discontinued) | 2'x2', impact-resistant lens, T8 or T12 lamp Upload | 2/7/2019 | View |
|
|
Photometry & Revit (BIM)
Spectral Data Sheets
Guideline Specifications
BIM Models (Revit)
Technical Documents (e.g. Instruction Sheets, MSDS, CAD)
Document Type | Document Title | Description | Updated | View |
|
|
---|---|---|---|---|---|---|
Acrylic Compatibility | Acrylic-Polycarbonate-Compatibility | Acrylic Compatibility Information | 9/24/2018 | View |
|
|
