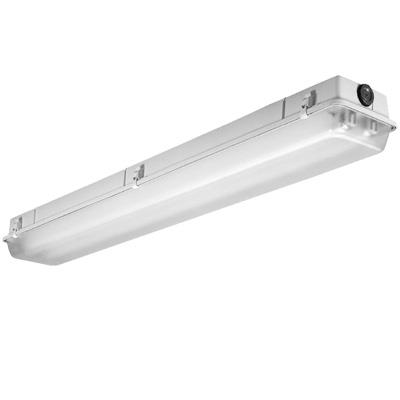

VRI

Enclosed, Fiberglass Housing

by Lithonia Lighting

General illumination for rough service (vandal-resistant) applications. Ideal for tunnels, canopies, shipping docks, refrigerated areas or any non-hazardous environment that requires a wet location listing. Certain airborne contaminants can diminish integrity of acrylic. Refer to Acrylic Environmental Compatibility tables for suitable uses.


Construction

Housing: Impact-resistant, UV-resistant, fiberglass-reinforced polyester housing with cold-rolled steel enclosed wireway.

Latches: Six tamper-resistant latches per 4' unit; 10 per 8' unit.

Finish: Painted parts finished with high-gloss, baked white enamel. Five-stage iron-phosphate pretreatment ensures superior paint adhesion and rust resistance.

Optics

Lens: High-impact 50% DR acrylic diffuser standard. Secured to fully gasketed housing by captive, tamper-resistant cam-action latches.

Electrical

Ballast: Thermally protected, Class P, HPF electronic ballast standard.

Installation

Suitable for surface, chain or stem mounting. Surface mount bracket included. (Two per 4' unit, four per 8' unit).

For non-tamper-resistant fixture, see DMW fluorescent industrial.

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View Download
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View Download
  • Photometry & BIM

    • Request BIM Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: your request will be routed to the BIM Design team. If escalation/questions is needed please email BIM@acuitybrands.com.
  • Specifications

    Brand Lithonia Lighting
    Color Beige
    Environment Indoor
    Finish Gloss
    Light Source Fluorescent, Not Applicable
    Listings CSA, Not Applicable
    Mounting Type Surface, Suspended
    Product Type Linear
    Series TVRI, VRI
    Voltage Rating 120, 277, 347, MVOLT
