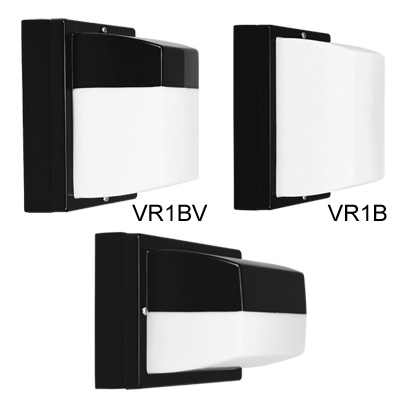

VR1B-VR2B

Cast Back Box

by Lithonia Lighting

Decorative luminaire for general illumination of rough service (vandal-resistant) applications. Ideal for applications that require maximum light capabilities for safety and security. Certain airborne contaminants can diminish integrity of acrylic. Refer to Acrylic Environmental Compatibility tables for suitable uses.


Construction

Housing: One-piece cast aluminum, finished in black polyester powder coat. One 1/2" opening allows rear conduit entry or covers the outlet box. Two mounting holes for wall mounting.

Gaskets: Perimeter housing gasket is one-piece, die-cut, closed-cell neoprene to seal out contaminants. Pad mounting gasket of closed-cell neoprene helps keep out moisture, insects and dust from housing.

Optics

Lens: VR1B/BV/BH: White opal UV-stabilized, injection- molded polycarbonate lens, nominal thickness .125". VR2B/BV/BH: Clear prismatic UV-stabilized, injection- molded polycarbonate lens, nominal thickness .125".

Smooth exterior for easy maintenance and accented with high-strength black Polane® polyurethane coating for hardness, adhesion and abrasion resistance. Lens is secured by two #8-32 stainless steel screws, either tamper-resistant TORX® T-20 or slotted hex-head (two of each included).

Electrical

Ballast: Electronic HPF multi-volt, starting temperature 0°F. Exception: 7TT is electromagnetic, NPF.

Sockets: Thermoplastic.

Lamps: 35K compact fluorescent lamp(s) included unless L/LP is specified.

Installation

Unit may be wall- or ceiling-mounted.

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View Download
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View Download
  • Photometry & BIM

    • Request BIM Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: your request will be routed to the BIM Design team. If escalation/questions is needed please email BIM@acuitybrands.com.
  • Specifications

    Brand Lithonia Lighting
    Color White
    Control Photocontrol (Outdoor)
    Environment Indoor
    Finish Gloss
    Light Source Compact Fluorescent, Incandescent
    Listings CSA, Not Applicable
    Mounting Type Surface
    Product Type Wallpack
    Series VR1B, VR1BH, VR1BV, VR2B, VR2BH, VR2BV
    Voltage Rating 120, 277, 347, MVOLT
