For entrances, stairwells, corridors and other pedestrian areas. Not recommended for applications with frequent exposure to harsh chemicals or commercial cleaning fluids (e.g., car washes). Installations in such environments may lead to premature failure of the luminaire and void the warranty.
Construction

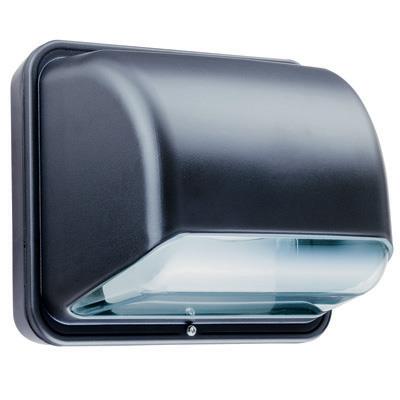

Housing: Rear housing is rugged, die-cast aluminum. Front cover is one-piece, UV-resistant, injection-molded polycarbonate, internally painted. Captive external hardware is treated for corrosion resistance and includes slotted hex-head and tamper-proof fasteners. Finish is dark bronze (DDB) corrosion-resistant polyester powder.
Optics
Front housing and refractor are one-piece, injection-molded, UV stabilized polycarbonate. One-piece, die-formed reflector is diffused aluminum. Refractor is clear polycarbonate, providing IES cutoff distribution and maximum lateral light output. Standard finish is dark bronze polyester enamel. Front cover sealed with one-piece, high temperature silicone gasket to inhibit entrance of outside contaminants.
Nighttime Friendly™ - Vandal resistant, polycarbonate lens,100W max.
Electrical
Components are mounted to the cast-aluminum housing, promoting maximum heat dissipation. Ballast: All ballasts are 100% factory tested. MH: High reactance, high power factor for 150W and below. 150W and below are standard with pulse-start ignitor technology. HPS: Reactor normal power factor standard for 120V, HPF available (XHP option). Other voltage are high power factor standard. Fluorescent ballasts are electronic HPF (26 DTT and TRT).
Socket: HID is porcelain, horizontally oriented, medium-base socket with copper alloy, nickel-plated screw shell and center contact. (UL Listed 660W, 600V and 4KV pulse rated.) Fluorescent is four-pin positive latching thermoplastic. LPI is standard 35K for CFL.
Installation
Top 1/2" threaded wiring access. Back access through 3/4" opening. For feed-thru wiring, use condulet tee (not included). Mount on any flat, non-combustible vertical surface.
Light Source | Compact Fluorescent |
Lumens | 1500 LM, 1900 LM, 2700 LM, 5500 LM, 6000 LM |
CCT / LED Color | 2100 K, 3000 K, 3200 K, 3500 K |
CRI | 21, 70, 82, 88 |
Product Type | Wallpack |
Regulatory Listing | NOM |
Fixture Wattage | 100, 26, 32, 42, 50, 70 |
Voltage Rating | 120, 120-277, 208, 240, 277, 347, 480, MVOLT |
Color | Beige, Black, Bronze, Green, Silver, White |
Mounting Type | Surface |
Series | TWAC |
