Architectural luminaires for general illumination in rough service (vandal-resistant) wall or ceiling-mount applications. Ideal for interior or exterior applications where safety and security are a concern. Certain airborne contaminants can diminish integrity of acrylic. Refer to Acrylic Environmental Compatibility tables for suitable uses.
Construction
Bezel: One-piece, die-cast aluminum, low-copper alloy (<1% copper), .125" thick. Secured to backplate with stainless steel TORX® T10 set screws (two included).
Finish: Standard finish is textured polyester powder coat. Color must be specified.
Backplate: Gasketed, 16-gauge steel, post-painted in black polyester powder coat. Universal keyhole and four-point mounting detail for mounting over junction box.
Gasket: Polycarbonate: Perimeter lens gasket is one-piece silicone "O" ring. Glass: Perimeter lens gasket is closed-cell silicone. Pad mounting gasket (closed-cell neoprene) seals backplate to mounting surface.
Optics
Lens: Translucent white, injection-molded, UV-stabilized polycarbonate, .125" thick. Smooth exterior for easy cleaning. Interior pattern diffuses light for uniform surface illumination. Optional starburst pattern polycarbonate and borosilicate glass lens available (.250 " thick).
Reflectors: High-gloss white powder coat finish for maximum light output. Lamps positioned for uniform brightness and illumination.
Electrical
Ballast: Class P, electronic, HPF multi-volt, <10% THD with starting temperature of 0°F. 13TT is electromagnetic, NPF, 120V only.
Socket: High-temperature thermoplastic with lamp retention clip.
Lamps: 35K four-pin lamp(s) included unless L/LP is specified.
Shape | Round |
Light Source | Compact Fluorescent |
Product Type | Wallpack |
Environmental Listing | Wet Location |
Regulatory Listing | CSA, NOM |
Fixture Wattage | 13, 18, 26, 32, 42 |
Voltage Rating | 120, 120-277, 277, 347 |
Color | Beige, Black, Bronze, Gray, Green, Red, Silver, White |
Mounting Type | Surface |

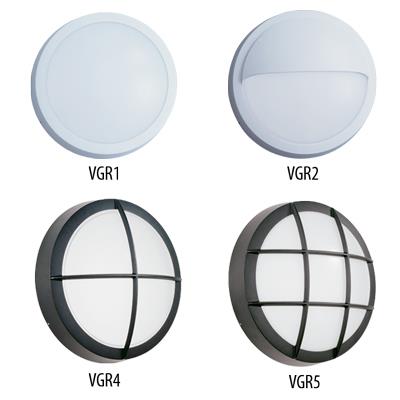

Series | VGR1, VGR2, VGR4, VGR5 |
Suggested Replacement Products
Spec Sheets
Document Type | Document Title | Description | Updated | View |
|
|
---|---|---|---|---|---|---|
SPEC SHEET | Gateway Round Eyelid - Compact Fluorescent | Gateway Round Eyelid - Compact Fluorescent | 9/6/2018 | View |
|
|
SPEC SHEET | Gateway Round Grille - Compact Fluorescent | Gateway Round Grille - Compact Fluorescent | 9/6/2018 | View |
|
|
SPEC SHEET | Gateway Round Grille - Compact Fluorescent | Gateway Round Grille - Compact Fluorescent | 2/24/2011 | View |
|
|
SPEC SHEET | Gateway Round Open Face - Compact Fluorescent | Gateway Round Open Face - Compact Fluorescent | 9/6/2018 | View |
|
|
SPEC SHEET | To be printed with all products containing acrylic material | To be printed with all products containing acrylic material | 7/26/2011 | View |
|
|
