WSR

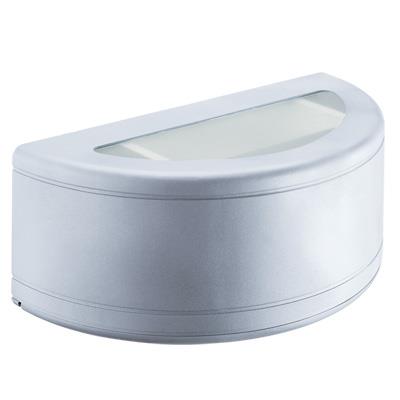

Architectural Sconce CFL HID Outdoor Half Round

by Lithonia Lighting

For building and wall mounted applications.

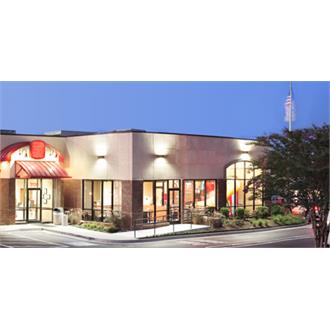

Architectural Sconce Series - The clean, crisp lines of the Architectural Sconce Series are designed to balance nicely in a range of retail, commercial, institutional and architectural environments. These versatile, artistically-inspired shapes can be used to highlight subtle architectural details or to provide security lighting for pedestrian walkways and parking areas. Series includes Trapezoid (WST), Half-Round (WSR), Quarter Sphere (WSQ) and Mini-Trapezoid (WSTM).


Construction

Housing: Rugged, die-cast, single-piece aluminum housing. Die-cast door frame has 1/8" thick tempered glass lens. Door frame is fully gasketed with one-piece solid silicone. Standard finish is textured dark bronze (DDBT) corrosion-resistant polyester powder with other architectural colors available.

Optics

Interchangeable, segmented reflectors for superior uniformity and control. Three full cutoff distributions available: FT (forward throw), MD (medium throw) and WT (wide throw). Four uplight distributions available in WSR only: FTU (forward throw, 10% up), MDU (medium throw, 10% up), WTU (wide throw, 10% up) and MDU5 (medium throw, 50% up). Compact fluorescent MD (medium throw) only. Two Precision Beam uplight distributions are available in WSR only with the WT (wide throw); Pencil Beam (WTUP) and the Column Beam (WTUC).

Both Precision Beams are available in white, blue, green, red and yellow color options.

Nighttime Friendly™ - Decorative style, half-round shape, full cutoff downlight distribution, 175W max.

Electrical

HID: 50W MH-150W utilizes a high reactance, high-power factor ballast. 35S and 50S utilizes a reactor normal-power factor ballast. 175W utilizes a constant-wattage auto transformer ballast. Quick-disconnect plug easily disconnects reflector from ballast. Ballasts are copper wound and 100% factory tested. CFL: compact fluorescent ballast is Class P, electronic, high-power factor, <10% THD with starting temp. of 0 degrees F (-18 degrees C).

Socket: HID is porcelain, medium-base copper alloy, nickel-plated screw shell and center contact. (UL Listed 660W, 600V 4KV pulse rated). Fluorescent socket is high-temperature thermoplastic with integral lamp retention clip.

Installation

Universal mounting mechanism with integral mounting support allows fixture to hinge down. Bubble level provides correct alignment with each installation.

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View Download
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View Download
  • Photometry & BIM

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    • Request BIM Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: your request will be routed to the BIM Design team. If escalation/questions is needed please email BIM@acuitybrands.com.
  • Specifications

    Brand Lithonia Lighting
    Color Beige, Black, Blue, Bronze, Brown, Gray, Green, Purple, Red, Silver, White, Yellow
    Control Photocontrol (Outdoor)
    Correlated Color Temperature 2000 K, 2100 K, 3000 K, 3200 K, 3500 K, 4000 K
    Environment Outdoor
    Finish Gloss, Textured
    Light Source Compact Fluorescent, HID - High Pressure Sodium, HID - Metal Halide
    Listings CSA
    Lumen Output 1500 LM, 1900 LM, 2700 LM, 5500 LM, 5600 LM, 6000 LM, 9500 LM, 14,000 LM
    Mounting Type Surface
    Product Type Wallpack
    Series WSR
    Voltage Rating 120, 208, 240, 277, 347, 480, MVOLT
