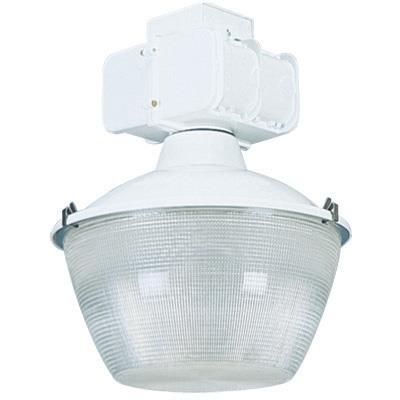

TX A165-A162

Enclosed Prismatic Acrylic Optical

by Lithonia Lighting

For areas that require high vertical illumination and wide spacings. Ideal for aisles, service areas and parking garages. Certain airborne contaminants can diminish integrity of acrylic. Refer to Acrylic Environmental Compatibility tables for suitable uses.


Construction

Housing: Heavy-duty, die-cast aluminum halves. Ballast and electrical components are heat-sinked and horizontally opposed for cooler operation. Integral splice box mounting flange ensures structural integrity. Electrostatically applied white polyester powder paint.

Optics

16" high efficiency, optical-quality, white polyester powder finish with one-piece injection-molded acrylic or polycarbonate refractor and bottom enclosure. Consult factory. Type I and II: Asymmetrical long and narrow distribution. Type V: Symmetrical circular distribution. OB optics are open bottom.

Electrical

Ballast: All ballasts are 100% factory tested. HPS: Constant wattage autotransformer. MH: 200-400W fixtures shipped within the U.S. require super CWA pulse start ballasts which are 88% efficient and EISA-legislation compliant (must specify SCWA option). CSA, NOM or INTL options required for probe start shipments outside the U.S.

Socket: Vertically oriented mogul base protected exclusionary "PINK" socket with copper alloy, nickel-plated screw shell and center contact. For use with O-rated, protected metal halide lamps only.

Installation

Pendant splice box threaded for 3/4" conduit (standard). Other mounting options available. Matching wire access cover accepts RELOC® modular wiring. Complete assembly meets or exceeds UL 50-pound pull test.

Optical mounting: Two 3-32 zinc-plated, tri-lobular, threaded-rolling screws are arranged concentrically around the lamp socket. Keyhole slot pattern for vibration-resistant mounting.

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View Download
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View Download
  • Photometry & BIM

    • Request BIM Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: your request will be routed to the BIM Design team. If escalation/questions is needed please email BIM@acuitybrands.com.
  • Specifications

    Brand Lithonia Lighting
    Color White
    Correlated Color Temperature Not Applicable
    Environment Indoor
    Finish Gloss
    Light Source HID - High Pressure Sodium, HID - Metal Halide, Not Applicable
    Listings CSA, Not Applicable, UL Damp Location, UL Wet Location
    Mounting Type Pendant, Suspended
    Product Type Low Bay
    Series TX
    Voltage Rating 120, 208, 240, 277, 347, 480
