FGB

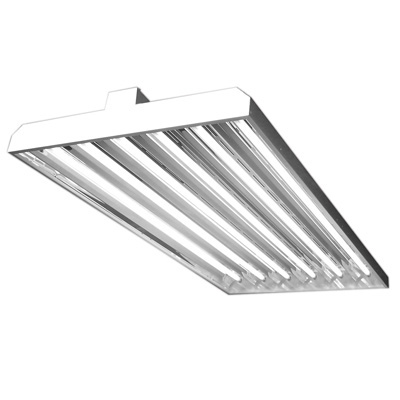

SPEC-BEAM™ Full-sided Fluorescent High Bay

By Lithonia Lighting

  • Overview
  • Specifications

Ideal for use in retail, industrial, commercial, gymnasium and warehouse environments where 400W-1000W fixtures would be considered. Provides a wide variety of photometric distributions and lamp combinations, each designed specifically for applications ranging from large open areas to very tall and narrow spaces. Certain airborne contaminants can diminish integrity of acrylic. Refer to Acrylic Environmental Compatibility tables for suitable uses.


Construction

Channel, ends and socket brackets are manufactured from 22-gauge cold-rolled steel. Riveted and screwed assembly. Tool-less ballast and wiring access. Optional heavy-gauge steel or all aluminum construction also are available.

Lamp shielding options are provided with a 22-gauge premium polyester powder coat finish door frame with two painted hinges and two painted opposing rotary cam latches. Lenses are held in place with lens clips.

Standard high-gloss white baked enamel, pre-treated with a 5-stage iron phosphate system. Optional premium polyester powder coat finish, utilizing a 7-stage pretreatment process of iron phosphate, a non-chromium sealer and a de-ionized water rinse to provide superior adhesion and corrosion resistance.

Optics

Reflectors are precision-formed, high performance, 95% total reflectance, segmented optics utilizing premium specular aluminum warranted for 25 years.

Electrical

Ballasts are electronic, energy-saving, thermally protected, Class P, HPF, non-PCB, Sound Rating A, UL/CSA Certified where applicable and comply with Federal Ballast Law (Public Law 100-357, 1988). UL Listed wire, rated for required temperatures, used throughout.

Lamps are secured with rotary locking lampholders for ease of re-lamping and to minimize disconnection due to vibration or incidental contact. Factory-installed lamps are available in various CRI ratings, temperature colors and rated life.

Installation

May be suspended with aircraft cable or chain hangers.

Read More
Read Less
Size 4FT
Shape Rectangular
Light Source Fluorescent, Not Applicable
Lumens Not Applicable
CCT / LED Color 3000 K, 3500 K, 4100 K, 5000 K
CRI 80, 85
Product Type High Bay
Environmental Listing Damp Location
Regulatory Listing CSA, UL
Fixture Wattage 28, 32, 54
Voltage Rating 120-277, 347-480
Color Clear, White
Mounting Type Not Applicable, Pendant, Suspended
Series FGB14, FGB164, FGB168, FGB24, FGB28, FGB324, HBBS, FGB24, FGB18

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET FGB-T5HO SPEC-BEAM fluorescent high bay; 2-6 lamps, 54W T5HO 5/2/2019 View
    SPEC SHEET FGB-T8 SPEC-BEAM fluorescent high bay; 2-6 lamps, 32W T8 7/19/2019 View
    SPEC SHEET High-lumen fluorescent high bay, 8-12 lamps, 32W T8 High-lumen fluorescent high bay, 8-12 lamps, 32W T8 5/2/2019 View
    SPEC SHEET High-lumen fluorescent high bay, 8-12 lamps, 54W T5HO High-lumen fluorescent high bay, 8-12 lamps, 54W T5HO View
    SPEC SHEET To be printed with all products containing acrylic material To be printed with all products containing acrylic material View
