SSA

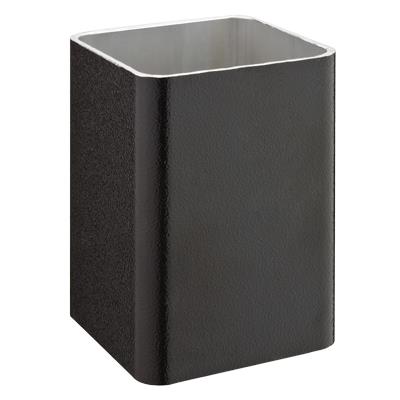

Square Straight Aluminum

by Lithonia Lighting

Square straight aluminum general purpose pole for up to 35-foot mounting heights.


Construction

Shaft: Made from extruded 6063-T6 or 6061-T6 aluminum alloy, square tube is uniform in cross-section down length of shaft with no taper.

Anchor base: Cast from A356 aluminum alloy and heat treated to T6 temper. Base plate and shaft are circumferentially welded top and bottom. Anchor bolt holes are recessed and are covered by tamper-resistant aluminum nut-cover discs

Anchor bolts: Fabricated from carbon steel bar with minimum-yield strength of 55,000 psi. Bolts have an "L" bend on lower end and are galvanized a minimum of 12 inches on the threaded end per ASTM A-153. Each anchor bolt is furnished with two hex nuts and two flat washers.

Grounding: Provision located inside hand hole rim. Grounding hardware is not included (provided by others).

Hand hole: Reinforced rectangular hand hole is located 18" above base. 4" poles have 2" x 4" hand hole; 5" and 6" poles have 2.5" x 4" hand hole. Hand-hole cover plate made from aluminum alloy

Hardware: Stainless steel.

Top cap: Removable top cap provided with drill-mount poles.

Bolt covers: Nut-cover discs provided.

Finish: Must specify finish.

Other

Check out POLESCENTRAL for additional resources and solutions.

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View Download
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View Download
  • Photometry & BIM

    • Request BIM Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: your request will be routed to the BIM Design team. If escalation/questions is needed please email BIM@acuitybrands.com.
  • Specifications

    Brand Lithonia Lighting
    Environment Outdoor
    Light Source Not Applicable
    Listings UL
    Mounting Type Pole
    Product Type Pole
    Series SSA
