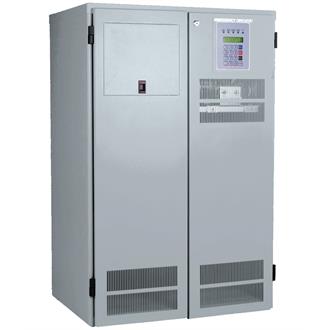

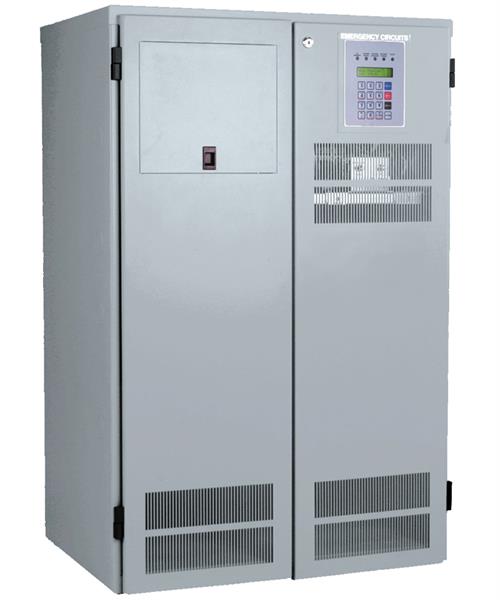

EAC ISS

AC Power Systems

by Power Sentry

Automatic standby AC power systems for incandescent and fluorescent emergency lighting loads that provide full light output for 90 minutes of operation.




Construction

Microprocessor-controlled PWM inverter with IGBT technology allows for universal compatibility.

Standard RS232 diagnostic interface. Low-voltage disconnect, short-circuit protection, current-limiting and brown-out protection.

Stackable, modular cabinet design enabling versatile installation.

Systems using standard lead calcium batteries that are 5.0 KVA and below are self-contained. Larger systems require external, stackable battery cabinets.

LCD meter panel displays input/output voltage, battery voltage and output current.

24-hour battery recharge standard.

50-millisecond transfer time.

Electrical

Maintenance-free, sealed lead calcium or lead calcium batteries with 20 year life.

Wet nickel cadmimum battery available.

Discharge cycle of 90 minutes at full load with fully charged batteries.

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & BIM

    • Request BIM Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: your request will be routed to the BIM Design team. If escalation/questions is needed please email BIM@acuitybrands.com.
  • Specifications

    Application Type Education, Government, Healthcare, Hospitality, Manufacturing, Offices & Banks, Religious, Retail
    Brand Power Sentry
    Environment Indoor
    Listings UL
    Mounting Type Not Applicable, Recessed, Surface
    Product Type Emergency Lighting Unit
    Series EAC
