TEJD

EJ

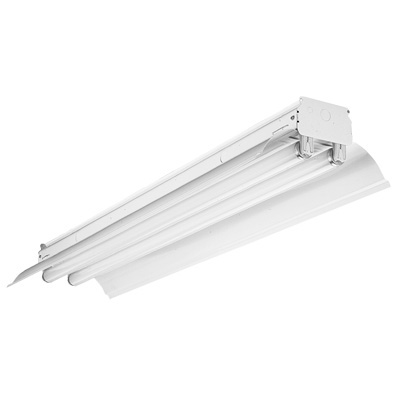

General-Purpose Industrials

by Lithonia Lighting

Use for applications requiring high illumination in medium to high mounting heights and a rugged, heavy-duty strip design.


Construction

Heavy-duty formed channel with high-gloss, baked white polyester finish.

Solid-top reflector or uplight is available. Premium-gauge channel features gripper-back design for strength and rigidity.

Lampholders secured by screwed-on end plates.

Heavy-duty row connector furnished for continuous mounting.

Electrical

Ballast: Thermally protected, resetting, Class P, HPF, non-PCB, UL Listed, CSA Certified ballast is standard. Sound rating depends on lamp/ballast combination.

Wiring and electrical: AWM, TFN or THHN wire used throughout, rated for required temperatures.

Ballast disconnect provided standard where required to comply with U.S. and Canadian electrical codes.

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & BIM

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    • Request BIM Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: your request will be routed to the BIM Design team. If escalation/questions is needed please email BIM@acuitybrands.com.
  • Specifications

    Brand Lithonia Lighting
    Color White
    Correlated Color Temperature Not Applicable
    Environment Indoor
    Finish Gloss
    Light Source Fluorescent, Not Applicable
    Listings CSA, CSA Damp Location, UL Damp Location
    Lumen Output Not Applicable
    Mounting Type Not Applicable, Pendant, Surface, Suspended
    Product Type Linear
    Series 2EJ, 2EJA, 2EJAR48, 2EJR48, EJ, EJA, EJS, EJSA, TEJS, TEJSA, 2EJR96, 2EJAR96, 2EJR24
    Voltage Rating 120, 277, 347, HVOLT, MVOLT, Not Applicable
