By American Electric Lighting

    DLC StandardBuy America(n) Option Available
  • Overview
  • Specifications

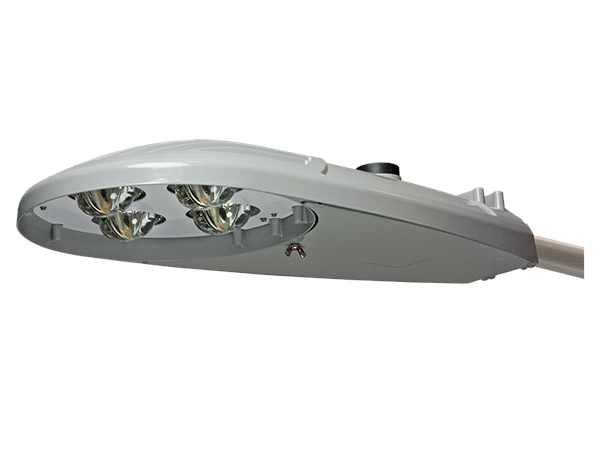

The Autobahn ATBL cobra head uses breakthrough LEDs and precision-engineered optics to provide exceptional LED roadway lighting while also saving 60% energy over HID alternatives. Reduce maintenance and improve visibility with crisp white light. Works seamlessly with advanced wireless controls to maximize energy and maintenance savings through enhanced monitoring and control functions.
Read More
Read Less
Light Source LED - Static
Lumens 15,800 LM, 16,200 LM, 16,400 LM, 16,900 LM, 17,100 LM, 17,300 LM, 17,700 LM, 17,900 LM, 18,300 LM, 18,400 LM, 18,700 LM, 18,900 LM, 19,000 LM, 19,100 LM, 19,200 LM, 19,500 LM, 19,700 LM, 19,900 LM, 20,100 LM, 20,300 LM, 20,400 LM, 20,500 LM, 20,800 LM, 21,200 LM, 21,300 LM, 21,500 LM, 22,000 LM, 22,300 LM, 22,500 LM, 22,900 LM, 23,100 LM, 23,500 LM, 23,600 LM, 23,800 LM, 24,000 LM, 24,100 LM, 24,500 LM, 24,700 LM, 24,800 LM, 25,100 LM, 25,300 LM, 25,400 LM, 25,500 LM, 26,000 LM, 26,200 LM, 26,400 LM, 26,500 LM, 26,600 LM, 26,700 LM, 27,500 LM, 27,900 LM, 28,000 LM, 28,100 LM, 29,200 LM, 29,300 LM, 29,400 LM, 29,800 LM, 30,600 LM, 31,100 LM, 31,300 LM, 32,700 LM
CCT / LED Color 3000 K, 5000 K
CRI 70
Compliance Listing BAA, DLC Standard
Regulatory Listing cUL
Product Type Cobra Head
Dimming Protocol 0-10V
Voltage Rating 120-277, 347, 480
Mounting Type Arm Mount, Pole Mount
Mounting Location Pole
Primary Material Aluminum
Architectural Style Traditional
Series ATBL

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET ATBL SPEC SHEET.pdf Autobahn Series ATBL 1/10/2023 View
    SPEC SHEET ATBLFAO.PDF ATBL Field Adjustable Output device 1/10/2023 View

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    Document Type Document Title Description Updated View
    Spectral Data Sheet SpectralDataSheet_AEL_ATBL_3K_70CRI.pdf AEL_ATBL_3K_70CRI 11/2/2022 View
    Spectral Data Sheet SpectralDataSheet_AEL_ATBL_4K_70CRI.pdf AEL_ATBL_4K_70CRI 11/2/2022 View
    Spectral Data Sheet SpectralDataSheet_AEL_ATBL_5K_70CRI.pdf AEL_ATBL_5K_70CRI 11/2/2022 View

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions IM-391.pdf ATBL Installation Instructions View
    Installation Instructions IN-317.pdf Light Trespass & House Side Shield Installation View
    Installation Instructions RJ521450.pdf Rotable Dimming Receptacle Installation Instructions 10/5/2022 View

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures AEL_2339_ATBL Sell Sheet_0816.pdf Autobahn ATBL Sell Sheet View
    Brochures ATBXSML Family Brochure.pdf Autobahn ATBXSML Family Brochure 11/19/2019 View
