Product Image

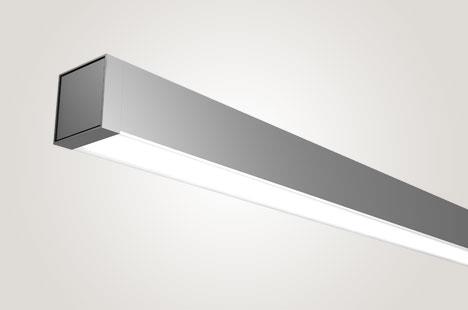

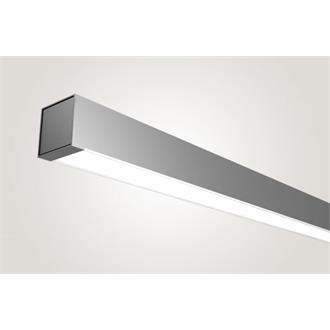

Square Direct

SQMS | LED | Suspended | Direct

By Peerless

    Buy America(n)
  • Overview
  • Specifications

Ideal for cafeterias and other social spaces, Square Direct is specifiable with high and low lumen packages making the luminaire well suited for a variety of applications.

Square Direct can be specified as nLight®-enabled to provide network controls connectivity, digital lumen management or both. It is also available with an integrated sensor for daylight dimming and occupancy detection control. Plus, Square Direct can be configured with an “L” connector to provide seamless corner illumination.

Square luminaires feature glare-free, Softshine® comfort optics and eldoLED® drivers that provide smooth, flicker-free digital dimming to black (0.1% low end).


  • 4ft and 8ft Sections
  • Up to 86 lm/W
  • Two lumen packages
  • Softshine®- engineered optics
  • White, Black or Aluminum Finish

  • Flicker-free dimming to dark
  • Flat or sculpted end caps
  • Lighting Facts Partner
  • 5-Year Warranty
Read More
Read Less
Shape Square
Light Source LED - Static
Lumens 400 LM, 800 LM
CCT / LED Color 3000 K, 3500 K, 4000 K
CRI 80
Product Type Linear
Compliance Listing BAA, Chicago Plenum
Environmental Listing Damp Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI
Mounting Type Suspended
Voltage Rating 120, 277
Series SQMS

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET SQMS.pdf SQMS (Suspended) LED 4/28/2021 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions F1 Installation Instructions.pdf F1 T-bar Ceiling Pendant Mounting Kits 6/15/2020 View
    Installation Instructions F1A Installation Instructions.pdf F1A T-bar Ceiling Pendant Mounting Kits 6/15/2020 View
    Installation Instructions F2 Installation Instructions.pdf F2 Hard Ceiling Pendant Mounting Kits 6/15/2020 View
    Installation Instructions SQMS_SQMSASO_SQMW_Installation_Instructions.pdf Square Direct, Aisle Stack and Wall Wash Pendant Mount View
    Technical Bulletins NL_1008400_nLight Wired Architectural Ambient Tech Guide_0122_002.pdf nLight Wired Technical Guide 2/3/2022 View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Product Brochure Square/Round Brochure View
