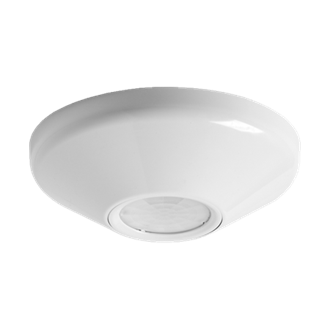

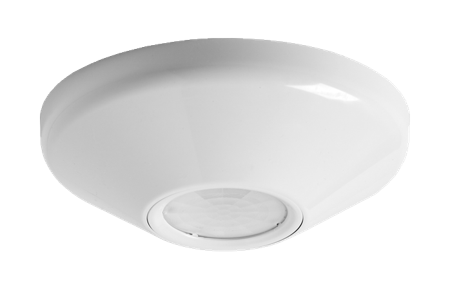

nCM ADCX RJB & nCM PC RJB

Ceiling Mount Daylight Sensor

by nLight

  • DesignLights Consortium®
The nCM ADCX RJB and nCM PC RJB photocell sensors are ceiling/surface mount devices that provide a range of daylight harvesting features for nLight Control System installations with finished ceilings (e.g. ceiling tiles, sheetrock, plaster). The nCM PC RJB version provides on/off photocell control by default, while the nCM ADCX RJB provides automatic dimming photocell control by default. Ideal for spaces with windows, such as vestibules, corridors, classrooms, or offices, these sensors work by first monitoring daylight conditions in a room. They then signal networked nLight control devices to adjust their dimming outputs (and/or turn lighting off) to obtain maximum energy savings while ensuring adequate lighting levels are maintained.
  • Automatic Dimming Photocell Control (nCM ADCX RJB model only)
  • Full On/Off Photocell Switching Control (disabled by default on nCM ADCX RJB)
  • Optional Inhibit mode: Photocell can prevent lights from turning on if adequate daylight is available, but does turn lights off (nCM PC RJB model only)
  • LED status indicator
  • Adustable settings (e.g. set-points) via push-button or SensorView software application
  • Broadcasts photocell information over a local nLight channel
  • Remotely upgradeable firmware

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View

  • Photometry & Revit (BIM)

    • Request BIM or IES Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: Your request will be routed to either the BIM or IES team. Thank you.

  • Specifications

    Brand nLight
    A+ Capable Yes
    Application Type Automotive & Parking, Education, Government, Healthcare, Hospitality, Manufacturing, Offices & Banks, Power & Gas, Religious, Residential, Retail, Roadways, Bridges & Tunnels, Sports and Recreation, Transportation, Warehouses
    Color White
    Finish Matte
    Mounting Type Flush, Surface
    Networkable Control Networkable Control
    Product Type Sensor
    Series NCM
    Voltage Low Voltage
    Compliance Listing DLC Standard
