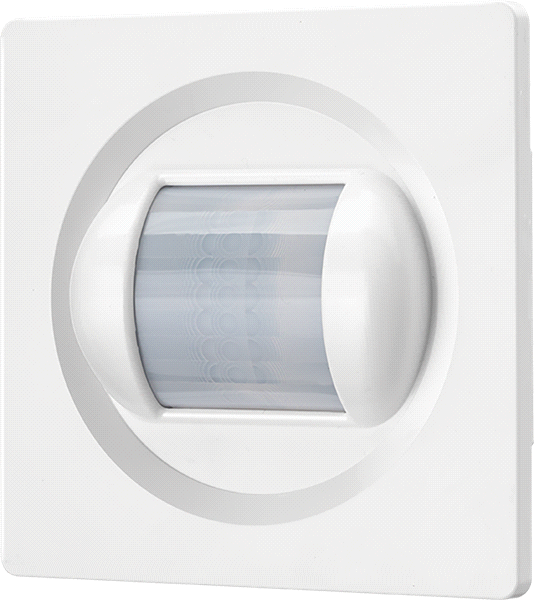

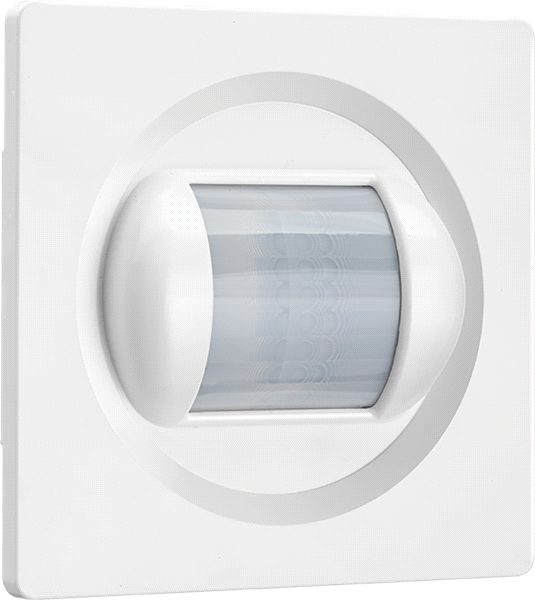

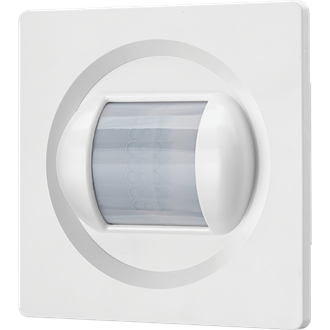

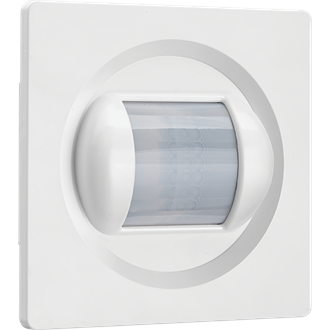

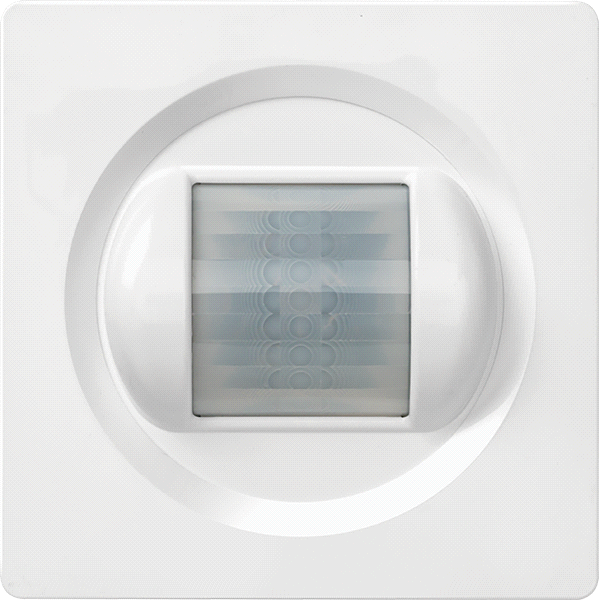

nRMFamily_nRM-50
nRMFamily_RM-6
nRMFamily_RM-9

nRM Family

nLight nRM Family of Sensors

by nLight

  • DesignLights Consortium®
The nRM family of nLight recessed mount occupancy sensors provide a range of networked sensor solutions for applications with finished ceilings (e.g. ceiling tiles, sheetrock, plaster). nRM family sensors utilize 100% digital Passive Infrared (PIR) detection and are available with several lens options, providing flexibility for multiple mounting height and coverage pattern requirements. Dual technology occupancy detection can also be added as an option for applications where occupants are stationary for long periods of time. All sensors have integrated on/off photocells as a standard feature, with automatic daylight harvesting/dimming control as an available option. nRM family sensors are powered via the nLight network bus and typically communicate with one or more nLight enabled luminaires (e.g. Lithonia VTLED Series) or nLight relay/dimming packs to enable control of fixtures individually or in groups. These configurations work standalone and do not require a connection to a larger nLight network.
  • 100% digital PIR detection
  • Push-button programmable, adjustable time delays, multiple operating modes
  • Integrated photocell standard (disabled by default) — Photocell views down through sensor lens and when enabled provides two selectable modes of operation
  • On/Off mode: Photocell has full on/off control during periods of occupancy
  • Inhibit mode: Photocell can prevent lights from turning on if adequate daylight is available, but cannot turn lights off
  • LED status indicator
  • Adustable settings (e.g. occupancy time delays, photocell set-points) via push-button or SensorView software application
  • Broadcasts occupancy and photocell information over a local nLight channel
  • Remotely upgradeable firmware
  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    • Request BIM or IES Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: Your request will be routed to either the BIM or IES team. Thank you.
  • Specifications

    Brand nLight, Sensor Switch
    A+ Capable Yes
    Application Type Automotive & Parking, Education, Government, Healthcare, Hospitality, Manufacturing, Offices & Banks, Power & Gas, Religious, Residential, Retail, Roadways, Bridges & Tunnels, Sports and Recreation, Transportation, Warehouses
    Control Device Type Daylight Sensor, Occupancy Sensor
    Control Protocol 0-10V
    Finish Gloss
    Mounting Type Recessed
    Networkable Control Networkable Control
    Product Type Sensor
    Series NRM
    Voltage Low Voltage
    Compliance Listing CA Title 24, DLC Standard
    Regulatory Listing ROHS
