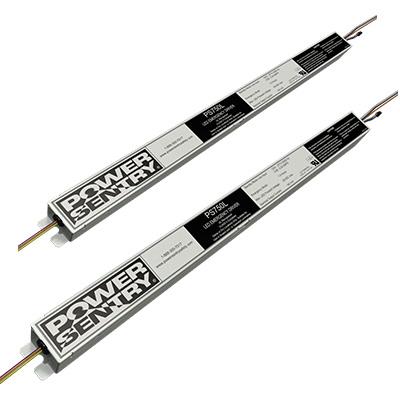

PS730L-PS750L

Emergency Battery Backup for Linear LED fixtures

By Power Sentry

  • Overview
  • Specifications
The Linear Profile Emergency Drivers (PS730L / PS750L) for LED application are ultra slim battery backup and the shortest of its class in the North America market today. These recent additions to the Power Sentry portfolio provide power for a minimum of 90 minutes to individual fixtures upon AC power interruption. The linear Profile solutions comply with UL924 and Life Safety Code requirements. Designed to install directly into fixtures with space limitations, the LED Linear Profile Series are compatible with virtually all LED drivers due to the cutting edge input/output isolation feature of Power Sentry products. The industry preferred input/output feature also ensures reliable performance of the emergency lighting system by providing protection to the battery backup from damage by feedback from other fixture components. It is also designed to prevent electric shock.
During an emergency event, the LED Linear Profile Emergency Battery Backup provides 7 Watt power @ 30/50VDC to keep lights powered on.
  • 90+ minutes of illumination during loss of normal AC power in accordance with UL924 and Life Safety Code requirements
  • Slim size ideal for wide variety of LED fixtures: 1.18” x 1.20” x 16.70”
  • UL-classified field installation and recognized for factory installation in selected Acuity Brands fixtures
  • 120-277 VAC universal input
  • Integrated test switch pilot light to reduce filed-wiring problems
  • Quick and easy installation that request no additional Class 2 measures
  • Quick-disconnect design to eliminate rewiring for maintenance or replacement
  • Optional automated code-compliance testing
Read More
Read Less
Max. Operating Temp. 50
Voltage Rating MVOLT
Regulatory Listing NFPA 101, UL
Product Type Emergency LED Driver
Series PS730L, PS750L
  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET ELA-RTS-TSPLP-PSTS-PSPRSB.pdf Inverter Accessories (remote test/switches and pilot) 4/29/2020 View
    SPEC SHEET PS730L Specification Sheet Euro-stick, LED Emergency Battery Backup, 7W, 30VDC output voltage View
    SPEC SHEET PS750L Specification Sheet Euro-stick, LED Emergency Battery Backup, 7W, 50VDC output voltage View
  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions 912-00022-001.pdf Field Installation instructions for 1, 2, 3, 4, 8 boards (series and parallel) (Rev 3.2017) View
    Installation Instructions EMCSA00697 Rev B.pdf ELA TSPLP test switch/pilot light accessory - installation instruction sheet_Rev B, 10/2011 View
    Installation Instructions Power Sentry Field Install Instructions - 8BP.pdf 8 LED boards wired in parallel (Part# 912-00022-001) (3.27.2017) (PS750L only) View
    Material Safety Data Sheet Nicd-Sds.pdf MSDS for all Power Sentry NiCad brand battery packs View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Application Guide Field-Installable Driver Product Reference Chart.pdf Field Installable Emergency Driver Product Compatibility Quick Reference Chart View
    Application Guide Power Sentry Product Selection Guide.pdf Product Selection Guide View
    Sell Sheet Field Installable LED Emerg Drivers Sell Sheet.pdf Field Installable LED Emerg Drivers Sell Sheet View
