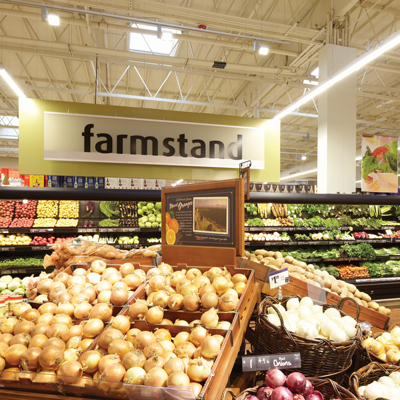

ZL_retail2

ZL1F

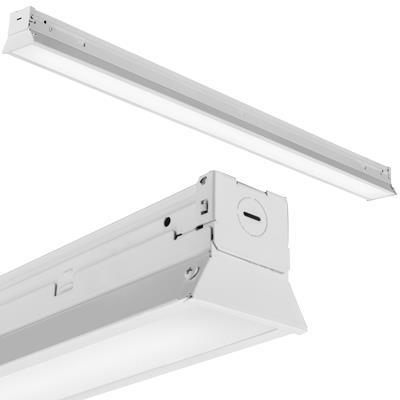

ZL Series LED Strip Light with Wide Flat Lens

By Lithonia Lighting

    CA Title 20Buy America(n) Option Available
  • Overview
  • Specifications

The ZL1F LED strip light for commercial and industrial applications, offers contemporary form and function. Its sleek, linear design and wide lens, provide a prominent presence for indoor ambient lighting. ZL1F LED maximizes savings yet does so without compromising light levels. The ZL1F is available in lengths up to 8' (2’, 4’ and 8’) for continuous-row applications.

  • Available in lumen packages from 1,500-12,000 lumens
  • Integrated emergency battery pack option
  • Factory-installed nLight Power pack option for synchronous dimming and networking
  • Continuous-row mounting for aisle applications

Change your expectations of strip lighting with additional ZL Series product:
ZL1D with diffuse drop lens and uplight
ZL1N narrow flat lens

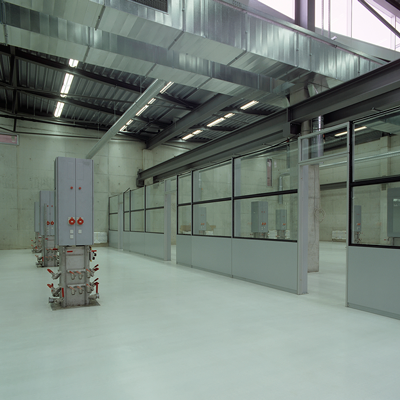

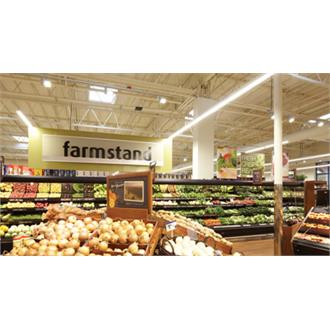

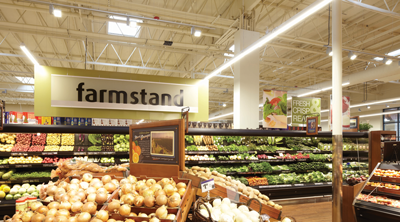

The ZL Series LED strip lights provide aesthetic and performance choices, integrated controls options and innovative mounting accessories ideal for commercial, retail, manufacturing, warehouse, cove and display applications. When paired with occupancy sensors, dimming and intuitive controls, you save energy and extend the life of the fixtures.

Read More
Read Less
Size 2FT, 4FT, 8FT
Shape Rectangular
Light Source LED - Static, Not Applicable
Dynamic Feature Not Applicable
Lumens 1500 LM, 2250 LM, 3000 LM, 4500 LM, 6000 LM, 9000 LM, 12,000 LM
CCT / LED Color 3000 K, 3500 K, 4000 K, 5000 K
CRI 80, 90
Product Type Mounting Cable
Compliance Listing BAA, CA Title 20
Environmental Listing Damp Location
Regulatory Listing CSA
Dimming Protocol 0-10V
Fixture Wattage 114, 15, 19, 30, 39, 48, 56, 77
Voltage Rating 120, 120-277, 208, 240, 277, 347, 480
Color Black, Gray, Pewter, White
Mounting Type Not Applicable, Surface, Suspended
Series ZACVH, ZLANGBKT, ZL1F, TZL1F, ZLR, RK2TZL1F, RK1TZL1F

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET ZL1F.pdf Architectural LED Striplight 10/3/2022 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    Document Type Document Title Description Updated View
    Spectral Data Sheet SpectralDataSheet_LL_TZL1F_35K_80CRI.pdf SpectralDataSheet_LL_TZL1F_35K_80CRI 8/5/2022 View
    Spectral Data Sheet SpectralDataSheet_LL_ZL1F_35K_80CRI.pdf SpectralDataSheet_LL_ZL1F_35K_80CRI 8/5/2022 View

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions ZACVH Instruction & Drawing_101811.pdf Adjustable 10' aircraft cable with Y hanger 4/28/2021 View
    Installation Instructions ZL1F installation instructions (U219850).pdf ZL1F installation instructions View
    Installation Instructions ZLANG Installation.pdf ZLANGBKT Luma-tilt™ angle bracket View
    Installation Instructions ZLR Instruction Sheet_U9917667.pdf ZL Reflector Install Instructions View
    Installation Instructions ZSPRG Instruction & Drawing.pdf Tong and T-grid hanger, for 15/16" T-grid 4/28/2021 View

  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet ZL Repair Kits 101619.pdf Replacement Lenses, Boards, Drivers, Etc. 1/26/2022 View

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    FAQ ZL Series FAQs.pdf Frequently asked questions for ZL Series LED Strip Lights View
