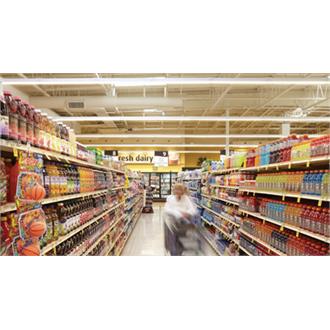

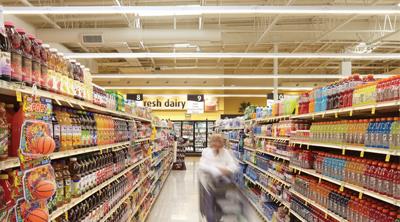

ZL_application1_ll

ZL1D

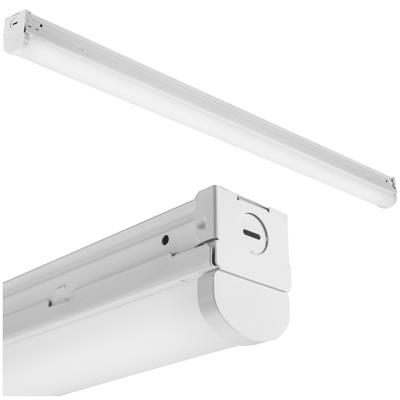

ZL Series LED Strip Light with Drop Lens and Uplight

By Lithonia Lighting

    DLC Standard / PremiumCA Title 20Buy America(n)
  • Overview
  • Specifications

The ZL1D LED strip light with its drop lens, provides a clean look for commercial or architectural applications. Intentional uplight helps minimize the cave effect on the ceiling. You get the application versatility of a fluorescent fixture, with the efficiency you expect from LED. Highly efficacious, the ZL1D maximizes savings yet does so without compromising light levels. The ZL1D is available in lengths of 2’, 4’ and 8’, allowing you to match existing fluorescent fixtures or keep the same aesthetic throughout your site.

  • Available in lumen packages from 1,500-14,000 lumens
  • Integrated emergency battery pack option
  • Factory-installed nLight® Power pack option for synchronous dimming and networking
  • Continuous-row mounting for aisle applications

Change your expectations of strip lighting with additional ZL Series product:
ZL1F linear design with wide lens
ZL1N narrow flat lens


The ZL Series LED strip lights provide aesthetic and performance choices, integrated controls options and innovative mounting accessories ideal for commercial, retail, manufacturing, warehouse, cove and display applications. When paired with occupancy sensors, dimming and intuitive controls, you save energy and extend the life of the fixtures.

Read More
Read Less
Size 2FT, 4FT, 8FT
Shape Rectangular
Light Source LED - Static, Not Applicable
Dynamic Feature Not Applicable
Lumens 1500 LM, 2500 LM, 3000 LM, 3500 LM, 5000 LM, 6000 LM, 7000 LM, 10,000 LM, 14,000 LM, Not Applicable
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 80, 90
Product Type Hanger
Compliance Listing BAA, CA Title 20, DLC Premium, DLC Standard
Environmental Listing Damp Location
Regulatory Listing CSA
Dimming Protocol 0-10V
Fixture Wattage 104, 121, 15, 17, 19, 22, 25, 30, 31, 34, 36, 41, 81, 48, 52, 59, 60, 68
Voltage Rating 120, 120-277, 208, 240, 277, 347, 480
Color Black, Gray, Pewter, White
Mounting Type Not Applicable, Surface, Suspended
Series ZSPRG, ZACVH, ZLANGBKT, ZLR, TZL1D, ZL1D, RK2ZL1D, RK2TZL1D, RK1ZL1D, RK1TZL1D

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET ZL1D.pdf LED Striplight 7/26/2022 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    Document Type Document Title Description Updated View
    Spectral Data Sheet SpectralDataSheet_LL_TZL1D_35K_80CRI.pdf SpectralDataSheet_LL_TZL1D_35K_80CRI 8/5/2022 View
    Spectral Data Sheet SpectralDataSheet_LL_ZL1D_35K_80CRI.pdf SpectralDataSheet_LL_ZL1D_35K_80CRI 8/5/2022 View

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions U219851.PDF ZL1D Installation Instruction Sheet View
    Installation Instructions ZACVH Instruction & Drawing_101811.pdf Adjustable 10' aircraft cable with Y hanger 4/28/2021 View
    Installation Instructions ZLANG Installation.pdf ZLANGBKT Luma-tilt™ angle bracket View
    Installation Instructions ZLR Instruction Sheet_U9917667.pdf ZL Reflector Install Instructions View
    Installation Instructions ZSPRG Instruction & Drawing.pdf Tong and T-grid hanger, for 15/16" T-grid 4/28/2021 View

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet ZL Repair Kits 101619.pdf Replacement Lenses, Boards, Drivers, Etc. 1/26/2022 View

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    FAQ ZL Series FAQs.pdf Frequently asked questions for ZL Series LED Strip Lights View
