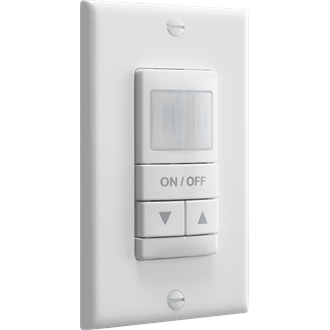

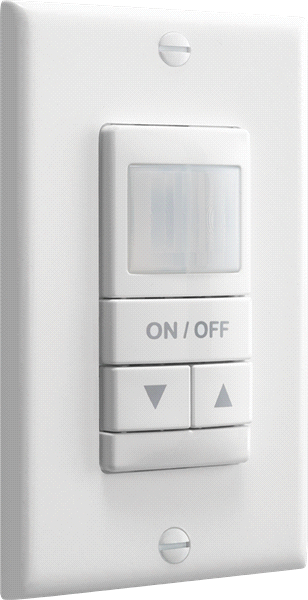

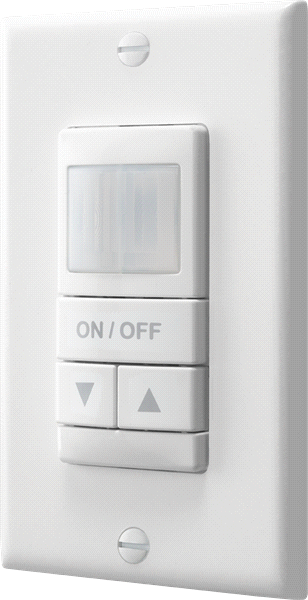

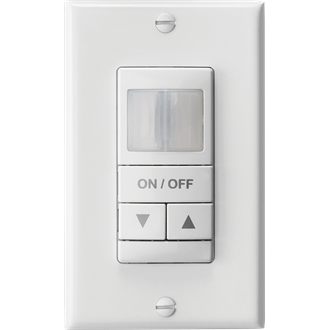

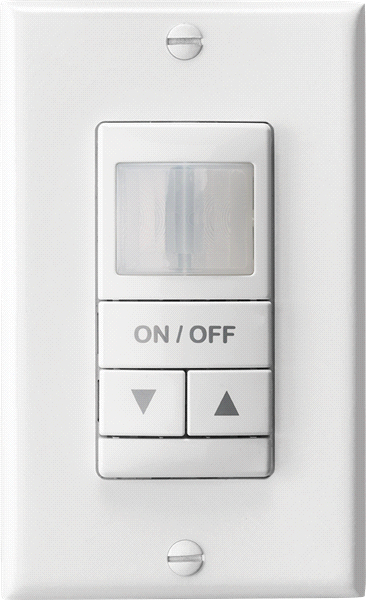

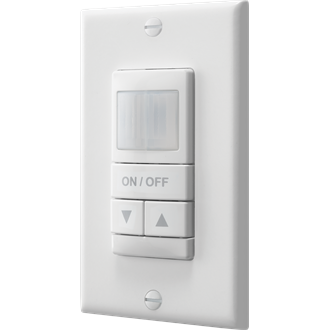

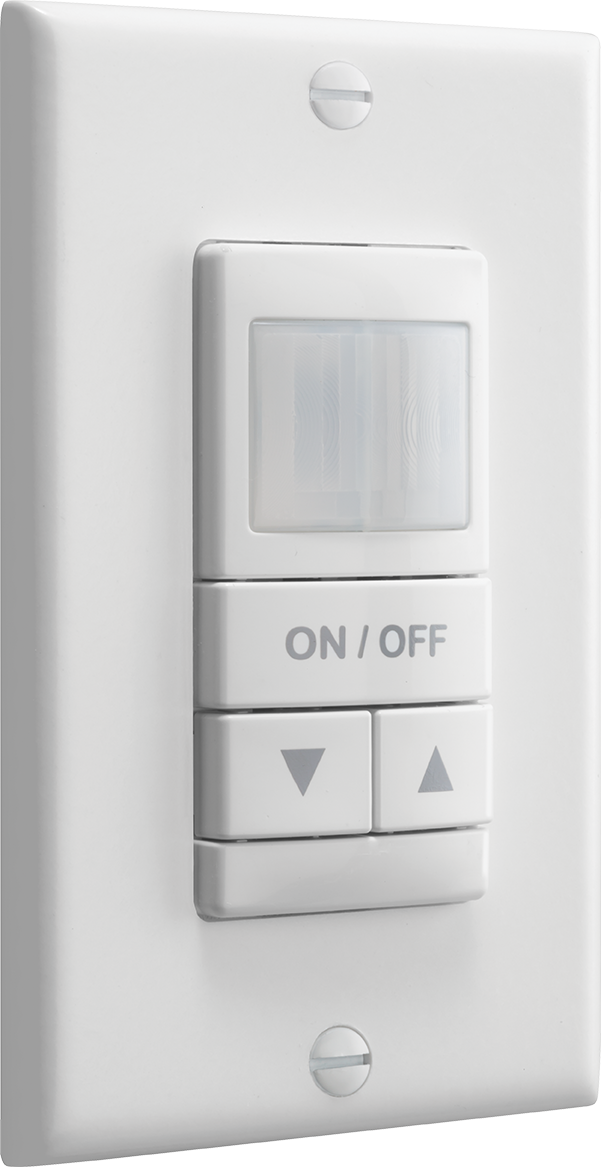

nWSX LV Family

Wall Switch Occupancy Sensor

By nLight

    DLC Standard / Premium
  • Overview
  • Specifications
The nWSX LV / nWSX PDT LV Series nLight wall switch occupancy sensor provides a simple control solution for a small room, in particular one utilizing nLight enabled digital luminaires. Capable of detecting small motion up to 20 ft (6.10 m), this sensor is perfect for private offices, private rest rooms, copy rooms, closets or any small enclosed space. The nWSX LV uses Passive Infrared (PIR) detection while the nWSX PDT LV utilizes PIR/Microphonics Dual Technology (PDT). This stylish sensor can be programmed locally, via the front push-button(s), or remotely via the nLight SensorView software. The nWSX LV/nWSX PDT LV includes an integrated photocell (disabled by default).
100% digital PIR detection , vandal resistant lens standard, includes wall plate (screwless sold separate), Push-button programmable, adjustable time delays, multiple operating modes, Multiple nWSX sensors or WallPods can be used in 3 way (or greater) configurations w/o traveler wires, Photocell standard (disabled by default) — prevents lights from initially turning on if sufficient daylight, but does not turn lights off. (Photocell not available in nightlight version), LED status indicator, Broadcasts occupancy, photocell, and switch information over a local and/or global nLight channel, Remotely firmware upgradeable
Read More
Read Less
A+ Capable Yes
Control Device Type Dimming Switch, Occupancy Sensor
Mounting Type Surface
Networkable Control Networkable Control
Product Type Sensor
Color Black, Gray, Ivory, Light Almond, Red
Finish Gloss
Voltage Low Voltage
Compliance Listing DLC Standard, ROHS
Regulatory Listing C-UL-US, UL
Series NWSX
Application Type Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Retail, Sports and Recreation, Warehouses

Read More Read Less

  • Suggested Replacement Products


  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET nWSX LV Low Voltage Wall Switch Occupancy Sensor 3/25/2020 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions IN-15.2.pdf IN-15.2 Instruction Sheet.pdf View
    Riser Model nwsxlvdx riser.dwg nWSX LV DX riser model
