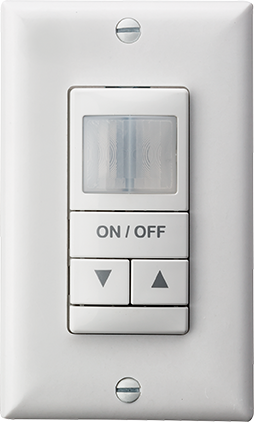

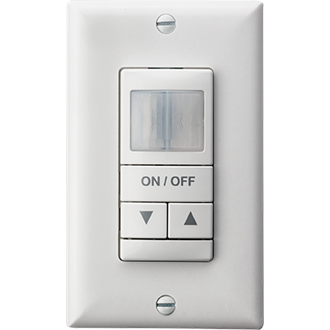

WSX D.png

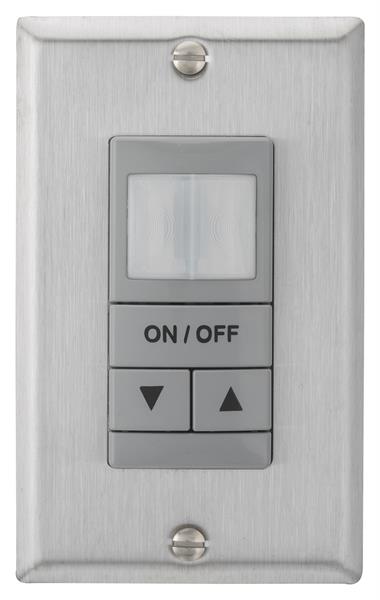

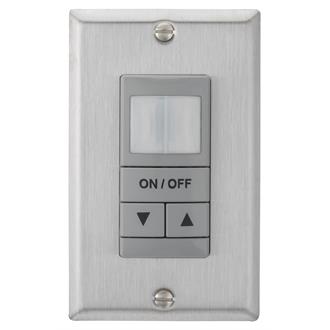

SSi_WSX D GY SS_001.jpg

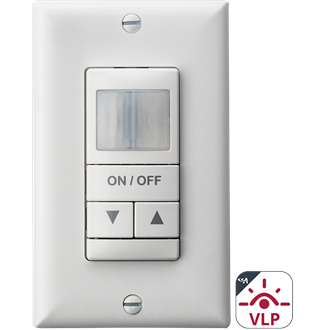

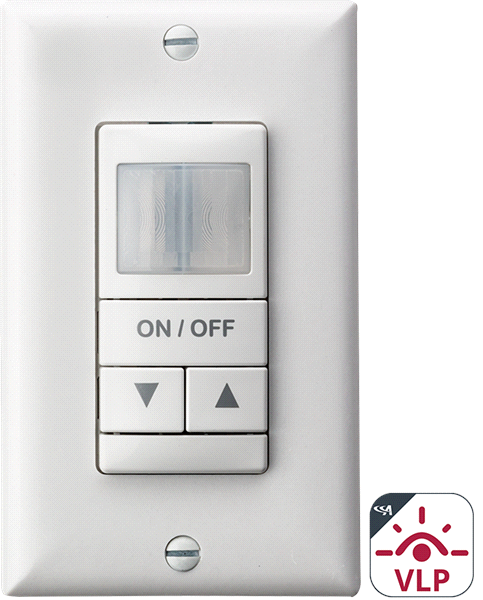

WSX D_VLP.png
SensorSwitch VLP

WSX D

Dimming Occupancy Wall Switch

By SensorSwitch

  • Overview
  • Specifications
The WSX D wall switch combines 0-10V dimming, passive dual technology occupancy sensing and automatic dimming photocontrols capabilities into a single device. The WSX D is the perfect solution in spaces where multiple energy saving strategies are required.

WSX D sensors are easy to program using traditional push-button programming or the optional SensorSwitch VLP mobile app. Watch this video to learn how to configure your wall switch sensors using the VLP mobile app.
Features:
  • Compatible with LEDs, electronic and magnetic ballasts, CFLs, and incandescents
  • 100% passive detection, no potential for interference with other building systems
  • Small motion detection to 20 ft
  • Push-button programmable without removing cover plate
  • Adjustable time delays and operating modes
  • Dual technology (PDT) utilizes PIR and Microphonics™ detection
  • Self-grounding mounting strap
  • Device accomodates powering over ground or neutral connection
  • Ultra low current leakage (<0.5 mA) when connected via ground
  • Line power and load wires are interchangeable - impossible to wire backwards
  • Fully meets NEC 2011 Section 404.2C neutral requirements - no current leakage to ground when connected to neutral


Read More
Read Less
Control Device Type Dimming Switch
Mounting Type Semi-recessed, Surface
Control Protocol 0-10V
Product Type Sensor
Color Black, Gray, Ivory, Light Almond, Red, White
Finish Gloss
Voltage Rating 347
Environmental Listing High Humidity
Regulatory Listing cUL, UL
Series WSX
Application Type Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Retail, Sports and Recreation, Warehouses

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET WSX D.pdf WSX D Wall Switch Occupancy Sensor with Dimming Spec Sheet 4/18/2022 View
    SPEC SHEET WSX D_Espanol.pdf WSX D Wall Switch Occupancy Sensor with Dimming - Spanish Spec Sheet 8/12/2019 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    2D Model wsxd347.dwg wsxd347.dwg 4/2/2019
    Installation Instructions WSX D Installation Instructions WSX D Wall Switch Sensor with Occupancy Detection and Daylighting Instruction Sheet 7/12/2022 View
    Technical Bulletins SensorSwitch VLP Mobile App Quick Start Guide SensorSwitch VLP Mobile App Quick Start Guide 10/13/2021 View
    Wiring Diagram Wall Switch Wiring Diagrams.pdf Wall Mount Wiring Diagrams View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    FAQ SensorSwitch VLP Mobile App FAQ SensorSwitch VLP Mobile App FAQ 10/13/2021 View
    FAQ WSX D_FAQ.pdf WSX D FAQ View
    Sell Sheet WSX D Sell Sheet.pdf WSX D Sell Sheet 5/12/2021 View
