SB Series Configurable LED Wraparound

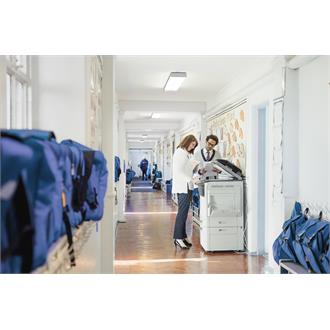

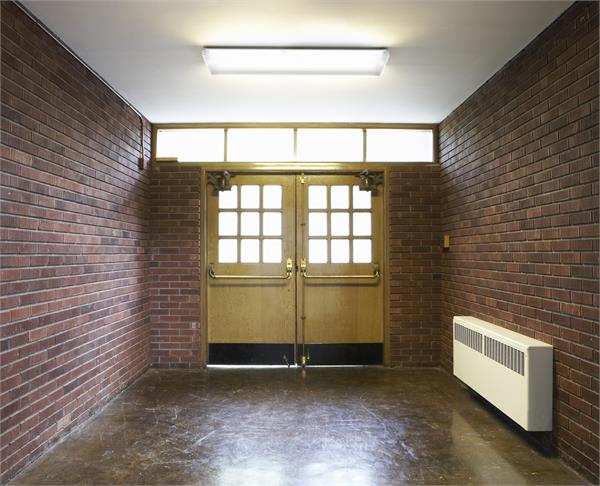

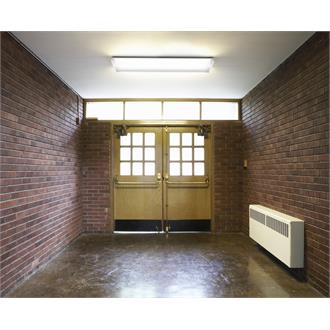

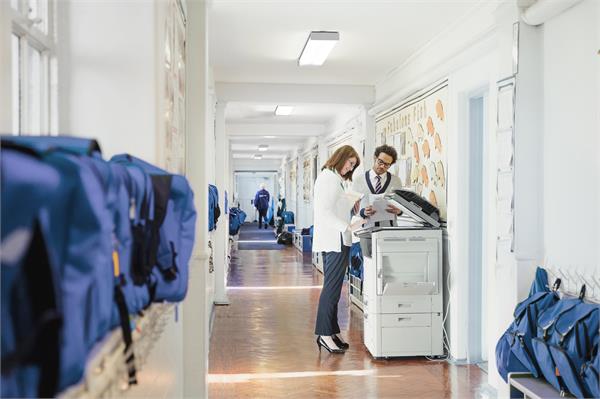

The SBL LED wraparound provides a digital lighting platform to deliver general ambient lighting for surface-mount applications. The LED system delivers long life and excellent color to ensure a quality, low-maintenance lighting installation. Ideal for closets, storage rooms, hallways, and offices.


Linear side prisms control brightness, pyramidal bottom prisms minimize lamp image. Continuous side flanges on fixture body provide light trap and continuous diffuser support to prevent accidental opening and simplify maintenance. Full depth, white enamel end plates.

Die-formed from code gauge cold-rolled steel. Channel cover snaps into place without the use of tools. Full end cap factory installed to reduce job site labor.


The translucent white diffuser reduces glare and pixilation without impacting performance.


Long-life LEDs, coupled with high-efficiency drivers, provide superior quantity and quality of illumination for extended service life. 90% LED lumen maintenance at 50,000 hours (L90/50,000). The LEDs have a CRI of 82.

eldoLED driver options deliver choice of dimming range and choices for control, while assuring flicker-free, low-current inrush, 89% efficiency and low EMI.

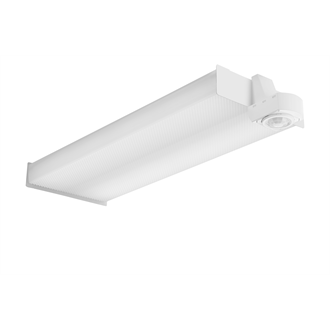

Pair the SBL with the fixture mount Sensor Switch LSXR sensor for additional energy savings when the space is unoccupied. The LSXRHL sensor dims the fixture down to a low-level setting when there is no occupancy. This option is ideal for stairwells, back rooms, and closets due to the low occupancy level in those spaces.

Optional nLight® embedded controls continuously monitor system performance, allow for constant lumen management / compensation function, facilitate simple “plug-and-play” network and controls upgrading via Cat-5 cable. Ballast disconnect provided where required to comply with US and Canadian codes.


CSA certified to U.S. and Canadian standards. Damp listed.

DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at to confirm which versions are qualified.


5-year limited warranty. Complete warranty terms located at

Product overview and specifications
A+ Capable Yes
Application Type Education, Offices and Banks, Retail
Architectural Style Traditional
Brand Name Lithonia Lighting
Color White
Color Rendering Index 80
Control Occupancy Sensor
Correlated Color Temperature 3500 K, 4000 K
Environment Indoor
Finish Gloss
Light Source LED
Listings CSA, DLC Standard
Lumen Maintenance L80
Lumen Output 2000 LM, 3000 LM, 4000 LM, 4800 LM, 6000 LM, 7200 LM
Mounting Type Surface
Product Type Wraparound
Series SBL2, SBL4
Shape Rectangular
Spec Sheets
A summary of the performance and other technical characteristics of the product.
File Type Document Type Document Title Description View | Download
SPEC SHEET SBL2_pdf 2' Square-basket LED Wraparound View | Download
SPEC SHEET SBL4_pdf 4' Square–basket LED Wraparound View | Download
