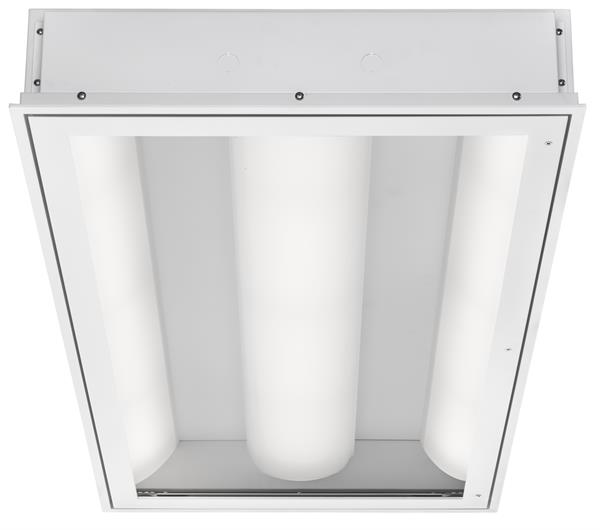

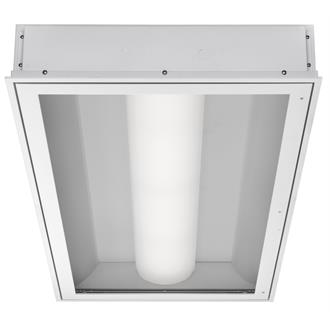

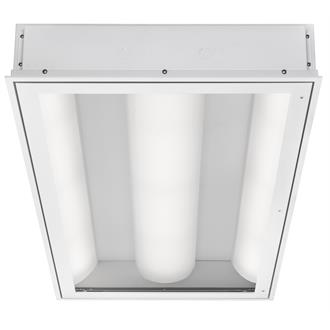

Product Image

Trilume PCX

Multi-Function Patient Lighting | Recessed | 2x2 and 2x4

By Healthcare Lighting

    Buy America(n) Option Available
  • Overview
  • Specifications

Traditional Style with LED Performance

Acuity Brands brings you the customary clean look of the Trilume form, made exceptional by optimized LED performance and intelligent but simple controls in a modernized sleek design. We make it easy to specify patient room lighting that meets recommended levels for patient and caregiver, with the added value of simply-integrated networked controls.


Performance - Optimized for energy-efficient LED source to deliver recommended light levels with reduced energy consumption

Beautiful Dimming - Smooth, seamless, flicker-free dimming to 1% enabled by eldoLED® constant current drivers – both ambient and exam lighting

nLight® Intelligent Controls - Digital control technology of nLight combined with analog technology of sequential switching

A+ Certified Systems - Configurations of Trilume PCX luminaires can be part of an A+ Certified lighting system, your assurance of compatible and consistent performance


FEATURES:

  • Optional side-light (indirect) ambient mode with glare-free (direct) exam mode
  • Smooth, flicker-free dimming of both ambient (patient) and exam (caregiver) intensity; 1% standard, 0.1% optional
  • nLight enabled controls
  • Network occupancy sensors, photocells, and wall sta¬tions with tradition¬al patient bedside controls
  • Independently tested to meet NSF2 industry standards
  • Hinged door with sanitary lens, standard
  • 3000K, 3500K, 4000K standard; 2700K optional
  • 80 CRI, standard; 90 CRI, optional
Read More
Read Less
Size 2x2, 2x4
Light Source LED - Static
Lumens 3500 LM, 6700 LM, 8700 LM, 10,000 LM, 11,300 LM, 13,200 LM, 13,600 LM, 15,100 LM, 15,300 LM
CCT / LED Color 3000 K, 3500 K, 4000 K, 5000 K
CRI 80, 90
Product Type Troffer
Compliance Listing BAA
Environmental Listing Damp Location, NSF
Regulatory Listing CSA
Dimming Protocol 0-10V
Fixture Wattage 124, 125, 155, 156, 16.5, 179, 27.6, 37.8, 46.7, 56, 67, 69, 72, 78, 86, 95
Voltage Rating 120, 277
Mounting Type Recessed
Series HPT822, HPT824

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET TRILUME PCX CB.pdf Patient Room Recessed Center Basket Only 10/11/2021 View
    SPEC SHEET TRILUME PCX.pdf Patient Room Recessed Lighting 1/3/2023 View
