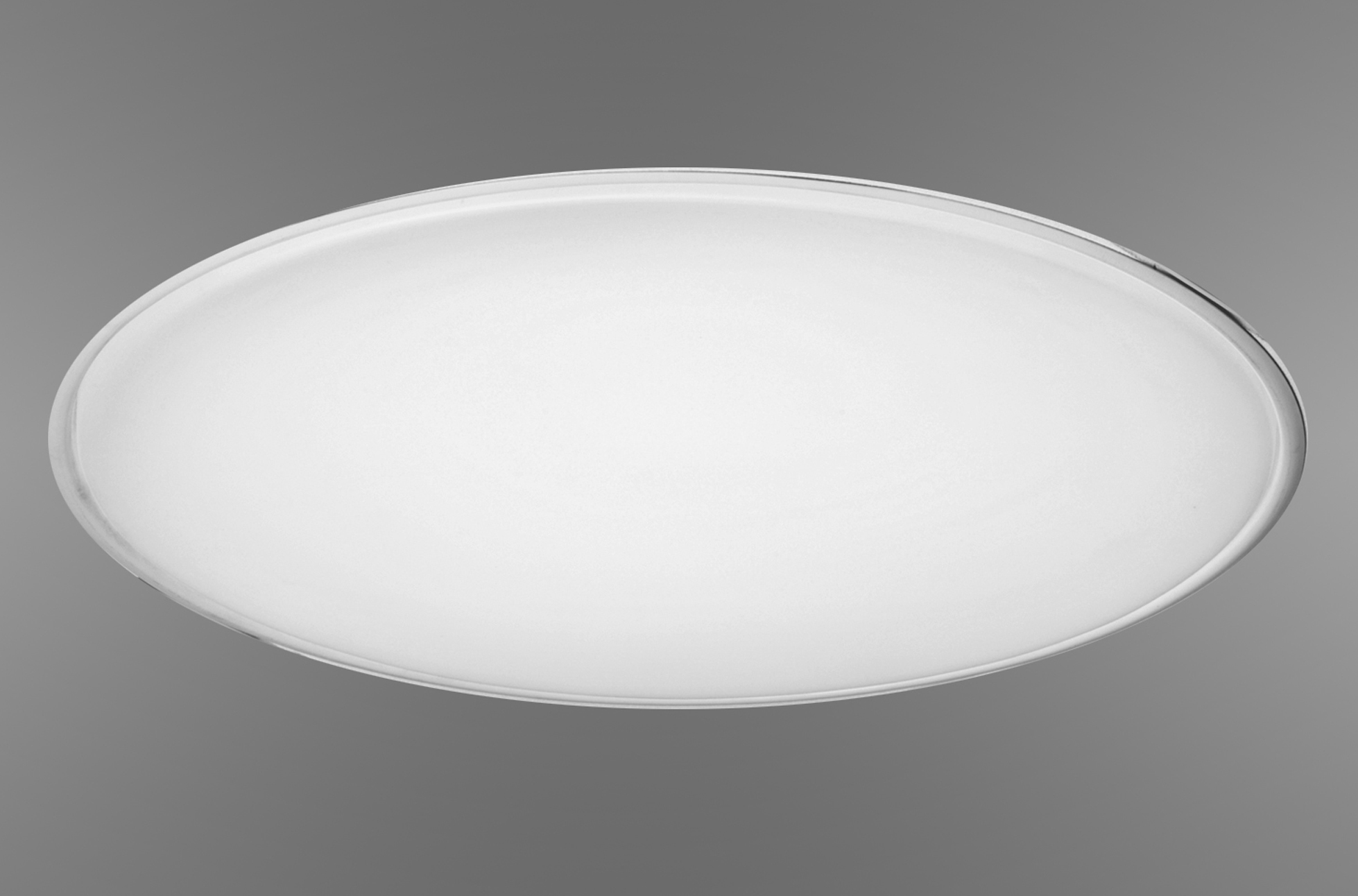

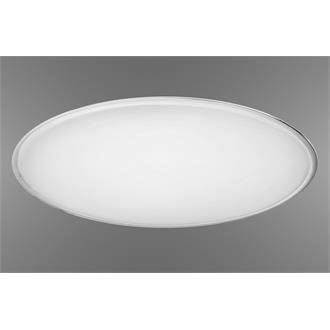

Magellan LED

Recessed grid, Concave or Convex Circular Dome, Direct illumination

By Mark Architectural Lighting

    Buy America(n) Option Available
  • Overview
  • Specifications
Make your mark with Magellan. Its softly translucent domed lens evenly distributes illumination across its surface, making the fixture resemble a floating circle of light. With lumen packages ranging from 300 to 17000 lumens, use Magellan to create a range of awe-inspiring installations. Six standard diameter sizes maximize design opportunity.
Read More
Read Less
Light Source LED - Static
Lumens 500 LM, 1000 LM, 3000 LM, 6500 LM, 9000 LM, 10,500 LM, 11,500 LM, 13,000 LM, 15,000 LM, 17,000 LM
CCT / LED Color 3000 K, 3500 K, 4000 K
CRI 80
Product Type Troffer
Compliance Listing BAA, Chicago Plenum
Environmental Listing Damp Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI
Mounting Type Recessed
Voltage Rating 120, 277
Series MGL

Read More Read Less
