CM PDT WR

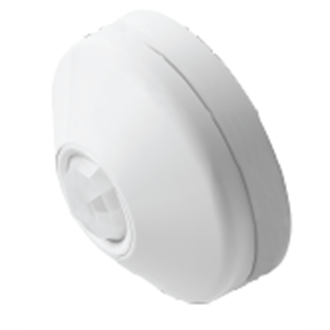

Wireless Battery Powered Sensor; Dual Technology

By SensorSwitch

  • Overview
  • Specifications
SensorSwitch battery operated sensors utilize RDT™ Wireless technology. They are designed to work with the SPODMR WR series wall switch/load controller or other RDT™ Wireless control devices. The CM PDT xx WR sensors have Passive Dual Technology (PDT), first seeing motion using 100% digital Passive Infrared (PIR) detection and then engaging Microphonics™ to hear sounds that indicate continued occupancy. Dual technology detection is necessary for applications with obstructions or where the occupant has their back to the sensor.|The SPODMR WR is a stylish, easy to install, and simple to use wall switch/load controller for use with synched RDTTM Wireless occupancy sensors, kinetic rocker switches, or plug-load controllers. Designed to replace a standard wall toggle switch, the SPODMR WR wires to hot, load, neutral, and ground. Once wired, a few button pushes will pair the switch to other RDTTM Wireless devices. For bi-level switching applications, two switches may be linked to one sensor. 3-way switching of the same load from multiple locations can also be quickly implemented.
When a sensor initially detects occupancy, it immediately transmits an occupied message wirelessly to its paired switch/load controller (e.g. SPODMR WR). Then, periodically according to its heartbeat timer setting, the sensor will transmit whether or not occupancy has been detected again since the last communication.

100% wireless operation

RDT™ Wireless (902 MHz) compliant

10 Year battery life (at defaults)

100% digital PIR detection

Optional small motion 360º or large motion 360º coverage pattern

Optional dual technology with PIR / Microphonics&trade detection

Push-button programmable

Adjustable time delays

No field calibration or sensitivity adjustments required

Green LED Indicator

Simple push-button pairing with compatible devices

Read More
Read Less
Control Device Type Occupancy Sensor, On/Off Switch
Mounting Type Surface
Control Protocol 0-10V
Product Type Sensor
Color Black, Gray, Ivory, Light Almond, White
Finish Gloss, Matte
Voltage Rating 120/277, Low Voltage
Environmental Listing High Humidity
Series CM, SPODMR
Application Type Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Retail, Sports and Recreation, Warehouses

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET SPODMR WR Form SPODMR WR Wall Mount Wireless Switch Spec Sheet View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions CM WR CM WR Ceiling Mount, Wireless Occupancy Sensor Instruction Sheet View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Sell Sheet SSI Wireless Sell Sheet.pdf Sensor Switch Wireless Sell Sheet View
