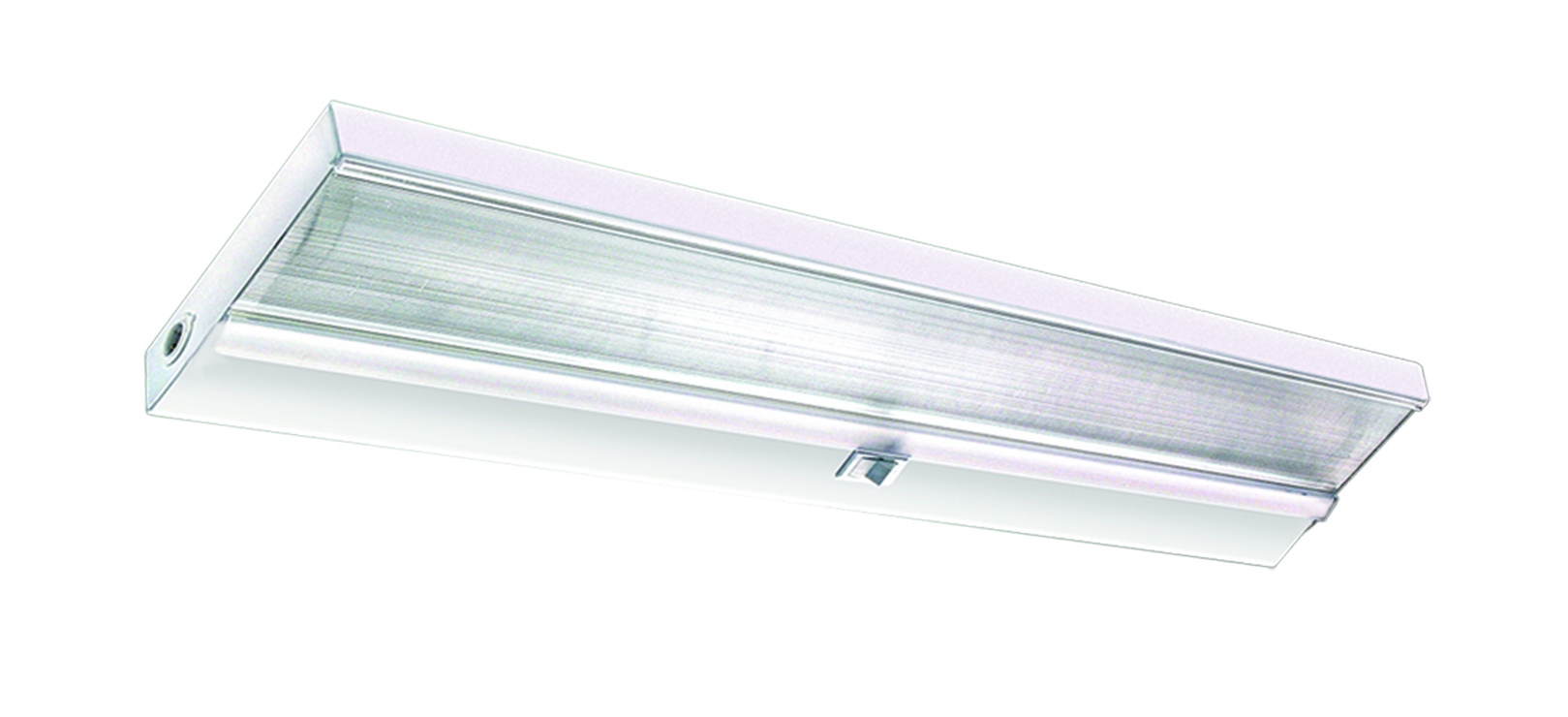

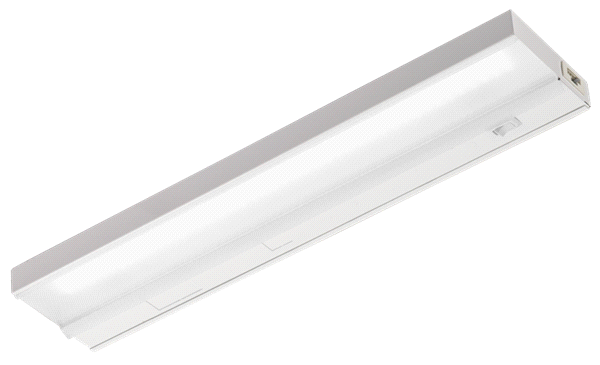

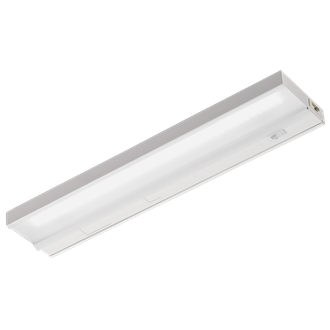

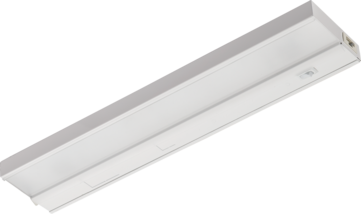

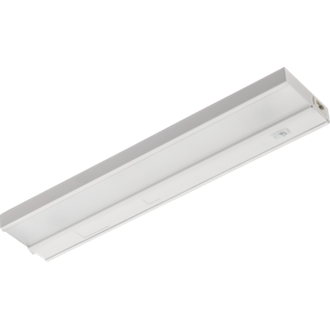

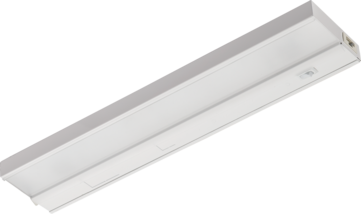

Spectra-SF LED

Undercabinet LED Fixture-Solid Front

By Healthcare Lighting

    Buy America(n) Option Available
  • Overview
  • Specifications

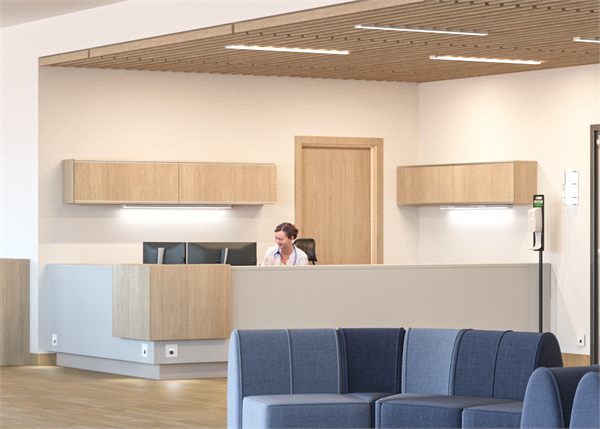

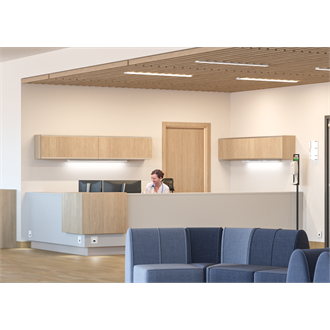

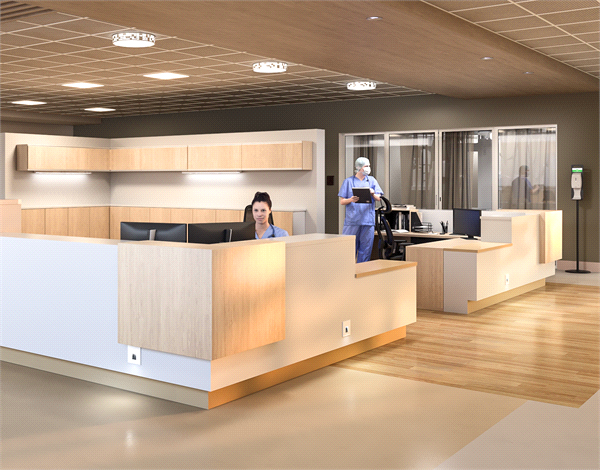

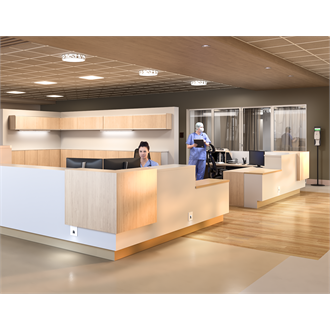

Localized task lighting is essential in many areas of a healthcare facility. This is especially important where work areas lay beneath cabinets or counters, as commonly found in pharmacies, laboratories, and nurse stations. Properly lighting these dim task areas reduces workers’ eye strain and fatigue. The custom lens design of the Spectra-SF LED undercabinet fixture effectively diffuses the point sources of light to eliminate dark bands and multiple shadowing sometimes associated with LEDs. The result is uniform distribution of light across the work surface without bothersome striations and distortions. A solid front housing creates clean cut-off and eliminates forward glare.
  • Solid front housing provides cut-off and minimizes light trespass
  • Rugged steel construction for installation ease and long term durability

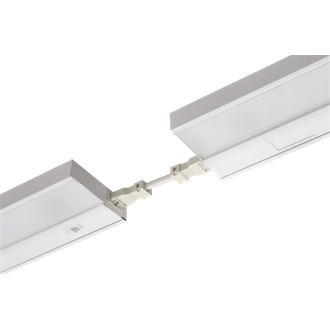

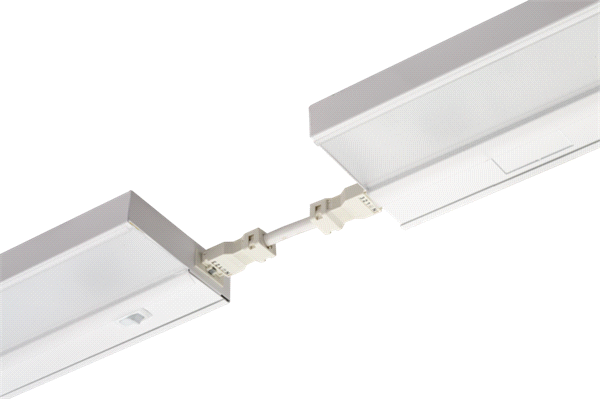

  • Linking connectors and extensions (options) join fixtures end-to-end, eliminating individual power feeds (120v only)
  • Occupancy sensor (option) with field-adjustable time delay improves energy-efficiency
  • Maximum 12W power for fixtures under 2 ft.
Read More
Read Less
Light Source LED - Static
Lumens 670 LM, 1000 LM, 1200 LM, 1900 LM, 2600 LM
CCT / LED Color 3000 K, 3500 K, 4000 K
CRI 80
Product Type Undercabinet
Compliance Listing BAA
Regulatory Listing CSAus
Dimming Protocol 0-10V
Fixture Wattage 10.5, 19.4, 26.3, 7.06
Voltage Rating 120, 120-277, 277
Mounting Type Surface
Series HUC519, HUC512, HUC523, HUC535, HUC546

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET SPECTRA-SF LED Spectra-SF LED Undercabinet 1/3/2023 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions Spectra SF LED Installation Instructions Spectra HUC512, HUC519, HUC523, HUC535, HUC546 Under-Cabinet 11/3/2021 View
    Technical Bulletins HUC5 Service Update New Linking Connectors (2015-May-13) New Linking Connector (effective (2015-Jun-1) View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Sell Sheet Spectra Sell Sheet.pdf Spectra SF LED Sell Sheet View
