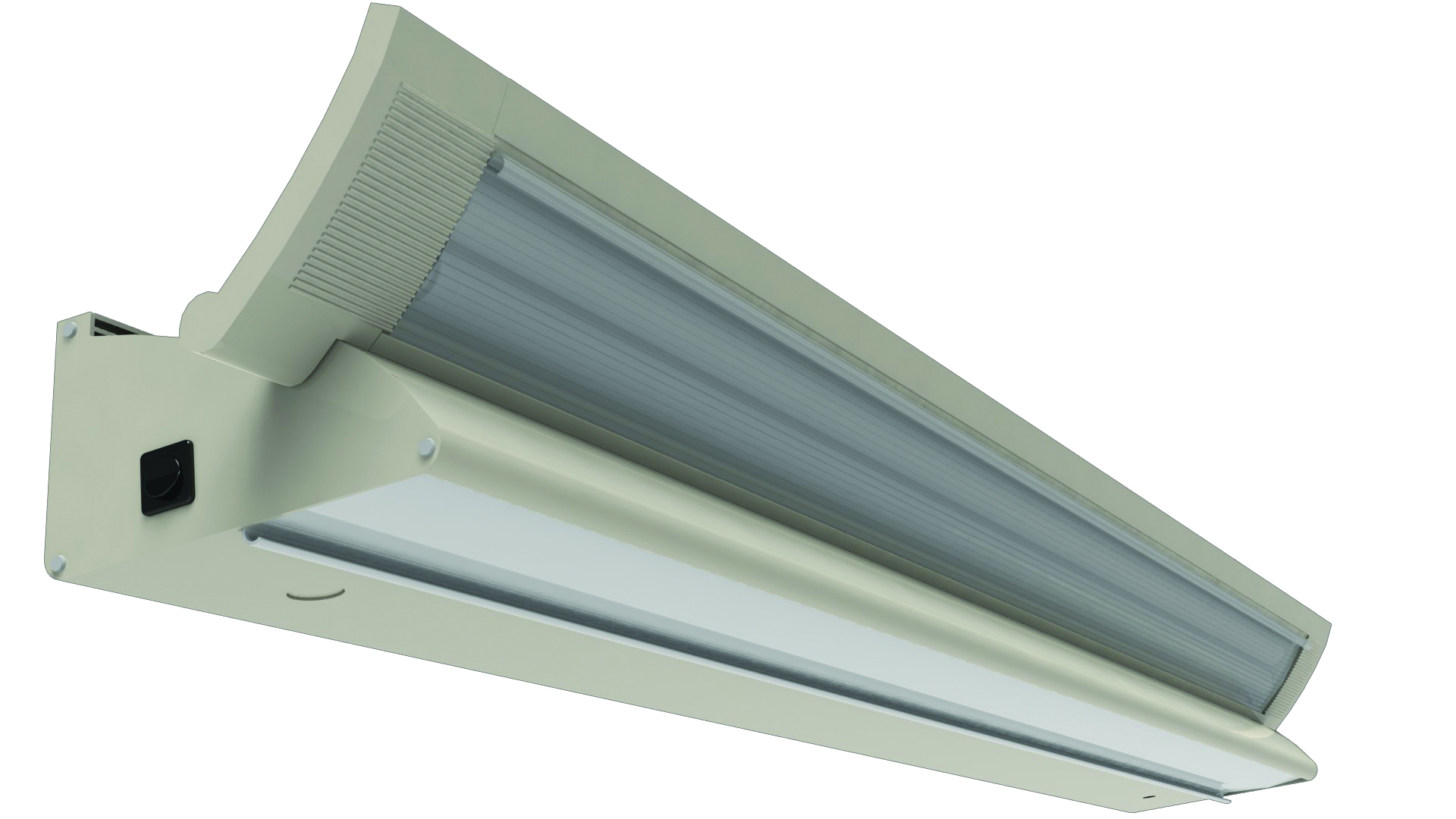

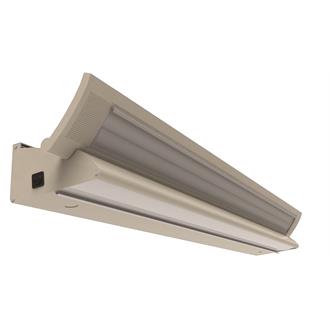

Chrysalite LED

Patient Room LED Headwall Fixture

By Healthcare Lighting

    Buy America(n) Option Available
  • Overview
  • Specifications
The Chrysalite LED is a stylish alternative solution for wall-mounted patient bed lighting. Photometric testing shows that fixture placement above and behind the patient delivers optimum light for reading and tasks. The Chrysalite LED comes with our unique convenience switch (option) which permits the caregiver to switch to exam mode by simply flipping the to section forward. Installation of a low voltage controller (option) will allow the interface of either the nurse call system or a separate pendant pillow switch (option).
  • Delivers multiple light levels for patient and caregiver: indirect, direct, both, as well as flip-top examination section
  • Unique convenience switch (option) allows exam lighting to illuminate automatically when exam head is flipped open
  • Automatically returns to previous light mode when exam head is closed
  • Top and bottom lenses are fully supported in grooves to prevent sagging
  • Separate mounting plate makes installation easy; mount rigid but lightweight plate to wall and then install fixture
  • Low voltage controller (option) allows patient control from nurse call system or separate pillow switch (option)
  • Tool-free access to ballast compartment while fixture remains on wall
  • Single-piece extruded aluminum body with die-cast handles for extreme durability
  • Entirely serviceable without removal from wall
Read More
Read Less
Light Source LED - Static
Lumens 8200 LM, 10,800 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 80
Product Type Wall Bracket Light
Compliance Listing BAA
Environmental Listing Damp Location
Regulatory Listing UL
Dimming Protocol 0-10V
Fixture Wattage 102, 37, 48, 60, 78, 79
Voltage Rating 120, 120-277
Mounting Type Surface
Series HPW236, HPW248

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET HPW2LED.pdf Wall Bracket Light 1/13/2022 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions Chrysalite LED Installation Instructions Chrysalite HPW236 & HPW248, 3FT, 4FT Wall Mount View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Sell Sheet Chrysalite_LED_Sell Sheet-HI Chrysalite Sell Sheet View
