By Peerless

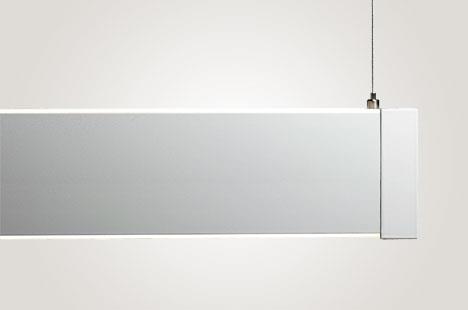

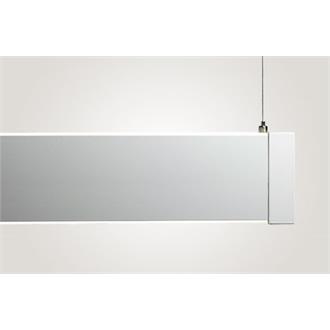

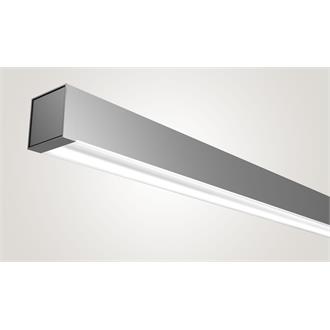

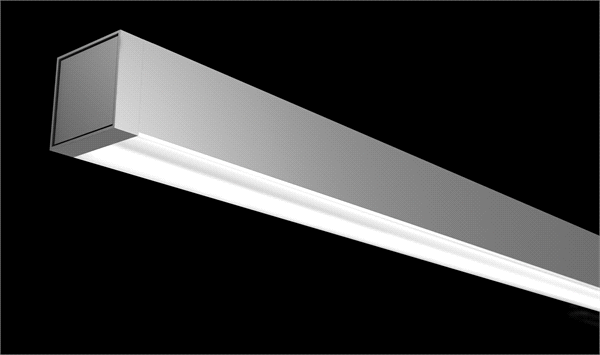

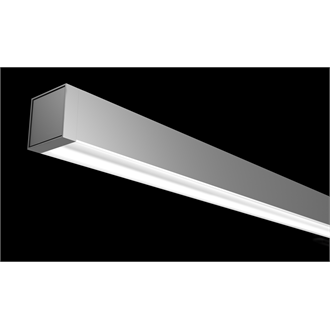

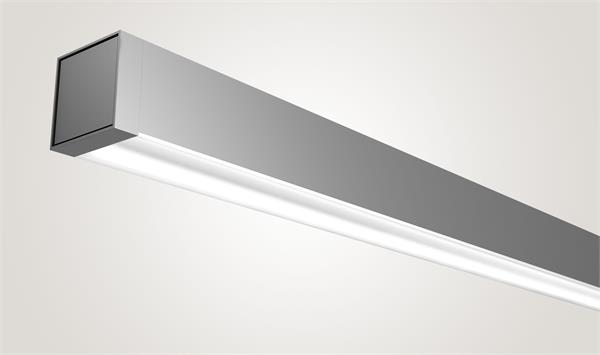

Direct attention to signs, menu boards, paintings, book shelves and other vertical features with Square Wall-Wash (suspended and surface).
Square Wall-Wash can be specified as nLight®-enabled to provide network controls connectivity, digital lumen management or both. Lumen management delivers constant lumen output, extends LED longevity and saves roughly 10% in energy use over Square's lifetime.
Square luminaires feature glare-free, Softshine® comfort optics and eldoLED® drivers that provide smooth, flicker-free digital dimming to black (0.1% low end).
|
|
Shape | Square |
Light Source | LED - Static |
Lumens | 300 LM, 600 LM |
CCT / LED Color | 3000 K, 3500 K, 4000 K |
CRI | 80 |
Product Type | Linear |
Compliance Listing | BAA, Chicago Plenum |
Environmental Listing | Damp Location |
Regulatory Listing | CSA |
Dimming Protocol | 0-10V, DALI |
Mounting Type | Surface, Suspended |
Voltage Rating | 120, 277 |
Series | SQMW, SQMWS |
Read More Read Less
Suggested Replacement Products
Spec Sheets
Photometry & Revit (BIM)
Description | Report | Design Tools |
|
|
---|---|---|---|---|
{{photometryItem.Catalog}} | Report |
|
|
Spectral Data Sheets
Guideline Specifications
BIM Models (Revit)
Technical Documents (e.g. Instruction Sheets, MSDS, CAD)
Document Type | Document Title | Description | Updated | View |
|
|
---|---|---|---|---|---|---|
Installation Instructions | F1 Installation Instructions.pdf | F1 T-Bar Pendant Mount | 6/15/2020 | View |
|
|
Installation Instructions | F1A Installation Instructions.pdf | F1A Installation Instructions | 6/15/2020 | View |
|
|
Installation Instructions | F2 Installation Instructions.pdf | F2 Hard Ceiling Pendant Mount | 6/15/2020 | View |
|
|
Installation Instructions | SQMS_SQMSASO_SQMW_Installation_Instructions.pdf | Square Direct, Aisle Stack and Wall Wash Pendant Mount | 6/28/2018 | View |
|
|
Technical Bulletins | NL_1008400_nLight Wired Architectural Ambient Tech Guide_0122_002.pdf | nLight Wired Technical Guide | 2/3/2022 | View |
|
|
