SBSLX

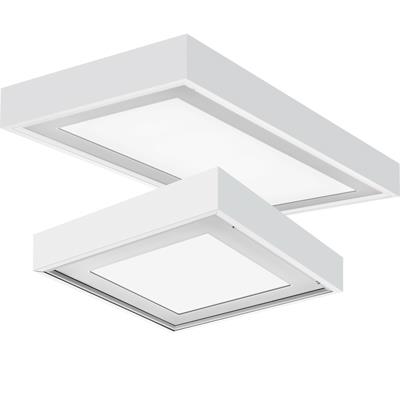

SBS Series Shadow-Box Square Surface-Mount LED Luminaire Discontinued

By Lithonia Lighting

    DLC Standard / Premium
  • Overview
  • Specifications

The Shadow Box Square surface-mount LED luminaire combines digital lighting and control technologies with an aesthetically-pleasing, uniform brightness. The combination of perforated perimeter and white center section provide a unique design element for commercial and institutional applications. The high-efficacy light engine delivers long life and excellent color, ensuring a lighting installation that is efficient and sustainable.


Construction

Housing formed from cold-rolled steel. Housing is painted after fabrication for superior finish.

Smooth hemmed sides and smooth inward-formed end flanges, for easy handling.

Standard extruded aluminum door frame has superior structural integrity with premium appearance and mitered corners. Door frame is painted after fabrication, standard. Powder-painted rotary cam latches provide easy, secure door closure. Integral T-bar clips are standard. Acrylic shielding material is 100% UV stabilized.

Optics

Stylish open matte white surrounded by perforated patterned trim creates a unique lighted appearance and adds visual interest to the space.

Electrical

Long-life LEDs, coupled with high-efficiency drivers, provide superior quantity and quality of illumination for extended service life. 90% LED lumen maintenance at 60,000 hours (L90/60,000).

nLight® embedded controls make each luminaire addressable - allowing it to digitally communicate with other nLight enabled controls such as dimmers, switches, occupancy sensors and photocontrols. Simply connect all the nLight enabled control devices and the AL luminaires using standard Cat-5 cabling. Unique plug-and-play convenience as devices and luminaires automatically discover each other and self-commission.

Lumen Management: Unique lumen management system (option N80) provides onboard intelligence that actively manages the LED light source so that constant lumen output is maintained over the system life, preventing the energy waste created by the traditional practice of over-lighting.

Step-level dimming option allows system to be switched to 50% power for compliance with common energy codes while maintaining fixture appearance.

eldoLED driver options deliver choice of dimming range, and choices for control, while assuring flicker-free, low-current inrush, 89% efficiency and low EMI.

Driver disconnect provided where required to comply with US and Canadian codes.

Installation

Surface mount. Drivers and internal components are accessible from floor. Suitable for damp location. Maintenance: LED boards include plug-in connectors for easy replacement or servicing.

Read More
Read Less
Size 2x2, 2x4
Shape Rectangular
Light Source LED - Static
Lumens 2000 LM, 3000 LM, 3300 LM, 4000 LM, 4800 LM, 6000 LM, 7200 LM
CCT / LED Color 3000 K, 3500 K, 4000 K, 5000 K
CRI 80
Product Type Surface Light
Compliance Listing DLC Standard
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI, DMX, Not Applicable
Fixture Wattage 18, 22, 25, 29, 32, 33, 35, 36, 39, 40, 44, 47, 51, 68, 72
Voltage Rating 120, 277, 347
Color White
Mounting Type Surface
Series 2ACLX2, 2ACLX4, WL4, 2SBSLX2, 2SBSLX4, 2ALLS2, 2VTLX2

Read More Read Less
