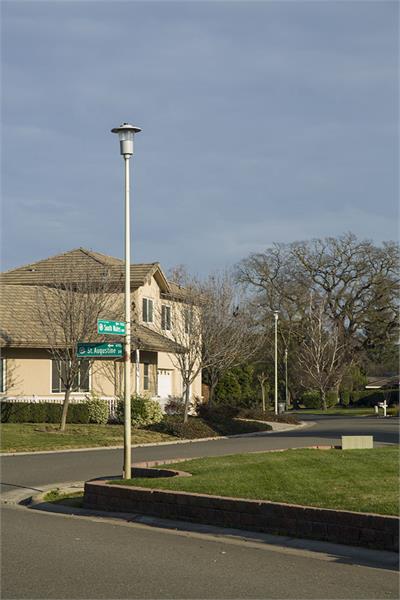

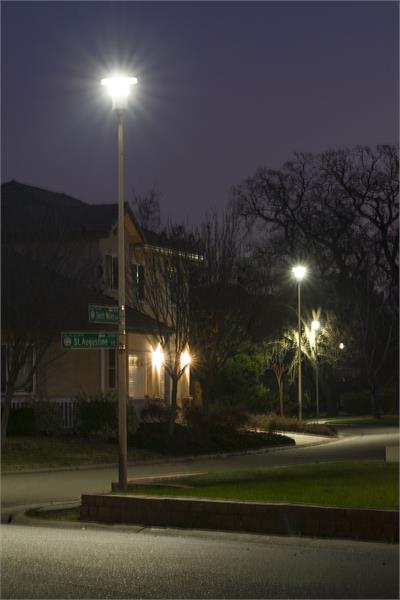

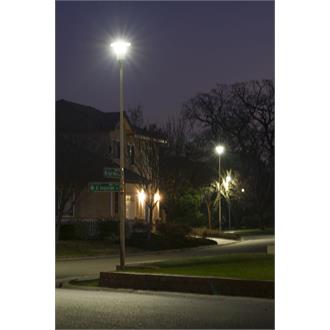

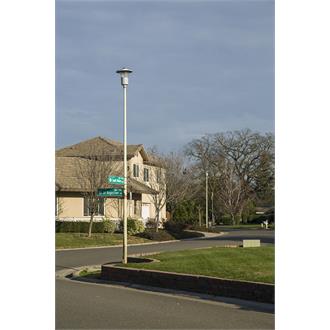

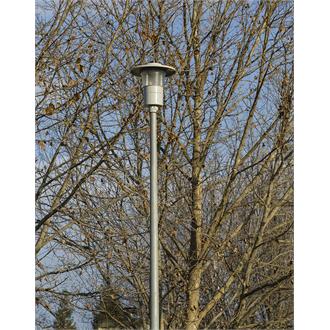

Elk Grove case study

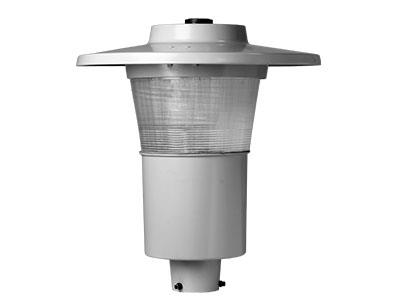

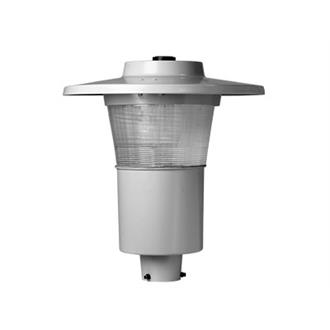

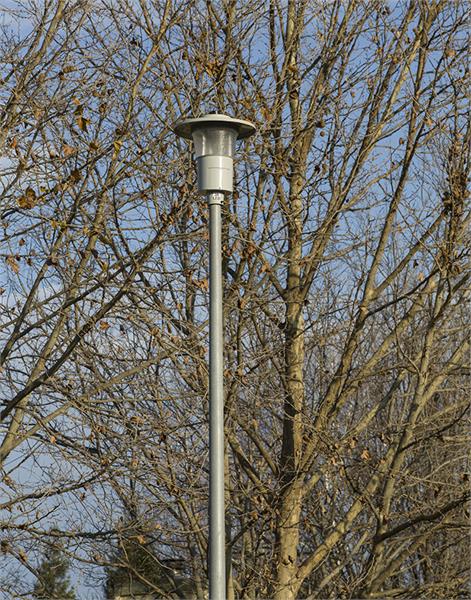

Series 245L LED - Contempo

Contemporary LED Post-top

by American Electric Lighting

  • DesignLights Consortium®
Energy efficient LED Post-top solution for local roads, residential communities, commercial streetscapes, campuses, parks, walkways, green spaces and site lighting.

The 245L LED Post-top is suitable for applications typical to HPS luminaires up to 150 watts, the Contempo LED combines modern aesthetics and install-friendly features of this popular series with a powerful new solid state platform.

The 245's light engine offers excellent optical control and heat dissipation to give you a beautiful, efficient lighting source while preserving the life of the components. The surge protection device and optional solid-state lighting photocontrol provide protection against electrical disturbances (such as lightning).


- Replaces up to 150 watt HPS
- 1,330 - 7,335 lumens
- Prismatic refractor in acrylic, glass or polycarbonate

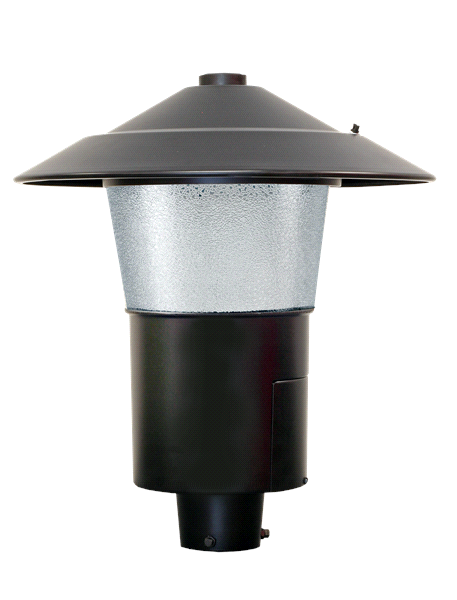

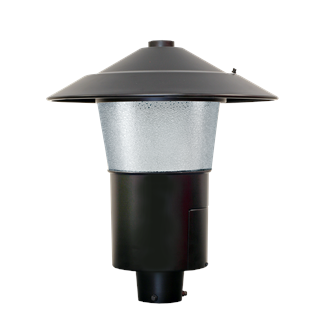

- Raindrop pattern refractor in acrylic or polycarbonate
- Multiple color temperature options
- Tool-less access to electrical components
- 10kV/5kA Class C surge protection with 20kV/10kA option
- Variety of controls options including part-night-dimming and field-adjustable lumen output
- Standard 3-pin photocontrol receptacle
- Optional 7-pin receptacle
- DALI driver available upon request
- SuperDurable corrosion-resistant finish

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    • Request BIM or IES Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: Your request will be routed to either the BIM or IES team. Thank you.
  • Need Product Assistance?

  • Need Product Assistance?

  • Specifications

    Brand American Electric Lighting
    Correlated Color Temperature 2700 K, 3000 K, 4000 K, 5000 K
    Environment Outdoor
    Light Source LED - Static
    Regulatory Listing CSA
    Compliance Listing DLC Standard
    Mounting Type Post Top
    Product Type Post Top
    Series 245L
    Voltage Rating 120-277, 347-480
