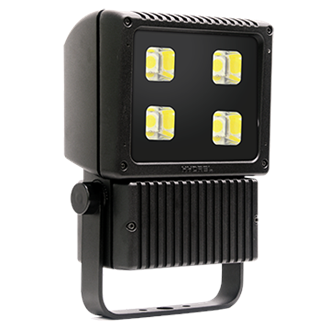

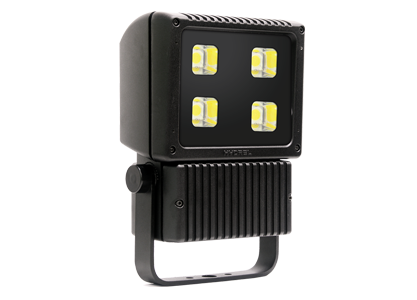

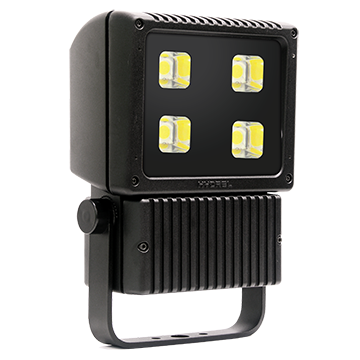

8100 LED Hazardous Floodlight

Hazardous Location LED Floodlight

By Hydrel

Hydrel 8100HL Series LED floods listed for hazardous locations and 3G vibration ratings. They are designed to provide long-lasting, energy efficient illumination even in the most demanding environments. Ready to withstand the rigors of weather, high pressure sprinkler heads, corrosive fertilizers and even lens impacts that would destroy most products, Hydrel 8100HL Series LED floods are particularly suited for ground mounted, upwardly aimed applications. With an expected service life of over 100,000 hours, Hydrel 8100HL Series LED floods avoid the multiple lamp changes associated with HID sources. A precision optical system provides controlled beam angles with excellent uniformity and superior glare control for effective floodlighting. Generating up to 18,000 lumens, the Hydrel 8100HL LED flood can easily replace a 400W metal halide flood, saving 65% in energy costs.

Read Less

Light Source	LED - Static
Lumens	18,000 LM
CCT / LED Color	3000 K, 4000 K, 5000 K
CRI	70
Product Type	Floodlight
Compliance Listing	BAA
Environmental Listing	Class I, Div 1, Class II, Div 2, IP67, Wet Location
Regulatory Listing	CSA, CSAus, NOM
Dimming Protocol	Forward Phase
Light Distribution	Flood, Horizontal Flood, Medium Flood, Narrow Flood, Vertical Flood, Wide Flood
Fixture Wattage	100, 110, 129, 163
Voltage Rating	120-277
Mounting Type	Pole Mount, Surface, Yoke
Color	Beige, Black, Bronze, Gray, Green, Silver, White
Series	8100HL

Read More Read Less

Spec Sheets

Document Type	Document Title	Description	Updated	View	Download	Email
SPEC SHEET	8100HL 4COB	8100 LED hazardous floodlight	5/17/2021	View	Download	Email

Create Submittal Spec Sheet

Photometry & Revit (BIM)

Search within... Use %(percent) to separate search terms.

Clear Filters

{{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

View Form Sizing

Description	Report	Design Tools	.ies	BIM

{{photometryItem.Catalog}}	Report	{{tool.Title}}	.ies	BIM

Prev
{{page}}
Next

CLICK HERE to start your request for a BIM Model or IES file.

Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

Document Type	Document Title	Description	Updated	View	Download	Email
Installation Instructions	8100HL LED Installation Sheet.pdf	Hydrel 8100HL LED Installation Sheet	7/14/2015	View	Download	Email
Installation Instructions	ABL Form 503_203.pdf	ABL LED General Warning, Form 503-203	7/14/2015	View	Download	Email
Installation Instructions	ABL General Warnings form no_503_204.pdf	ABL General Warning, Form 503-204	7/14/2015	View	Download	Email

Utility Rebate Search

Replacement Parts

Document Type	Document Title	Description	Updated	View	Download	Email
Replacement Part Installation Instructions	8000 LED Optics Installation.pdf	8000 LED Optics Installation	8/10/2015	View	Download	Email
Replacement Part Spec Sheet	PARTS-8100.pdf	Replacement Parts sheet for 8100 series flood	3/25/2021	View	Download	Email

Confidential Documents

Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

Document Type	Document Title	Description	Updated	View	Download	Email
Product Presentation	Hydrel 8000 Series LED Floodlight Presentation - July 2015.pdf		7/15/2015	View	Download	Email
