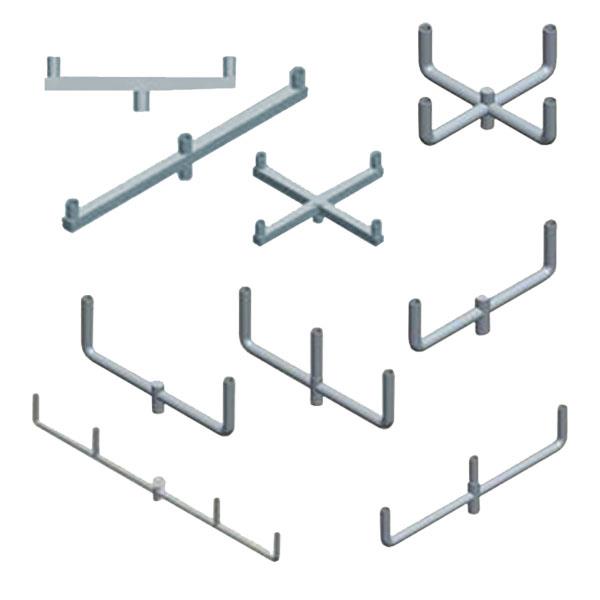

ARM & BKT Steel Vertical Arms
- Overview
- Specifications
Product Type | Arm |
Arm Mounting Type | Tenon |
Mounting Type | Post Top |
Primary Material | Steel |
Architectural Style | Utility |
Series | ARM88, ARM89, ARM91, ARM93, ARM94, ARM95, ARM96, BKT18, BKT19, BKT20, BKT24, BKT28, BKT29, BKT30, BKT33, BKT34 |
-
Suggested Replacement Products
PRODUCT INFORMATION
-
Spec Sheets
Document Type Description Updated View Spec Sheet ARM & BKT Steel Vertical Arms 11/15/2024 View -
Photometry & Revit (BIM)
CLICK HERE to start your request for a BIM Model or IES file. -
Spectral Data Sheets
-
Guideline Specifications
Document Type Description Updated View Guideline Specification Sheets Arms & Brackets Selection Guide 1/12/2021 View -
Revit Component Files (Non-Illuminated)
-
Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

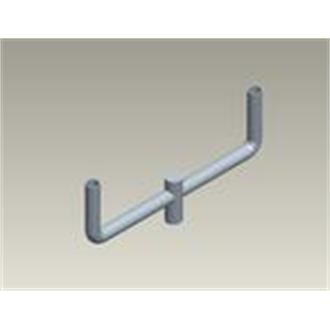

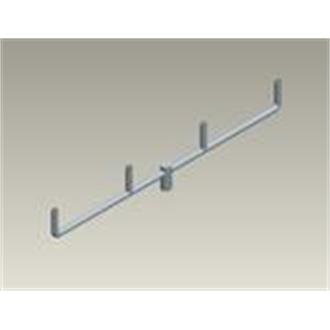

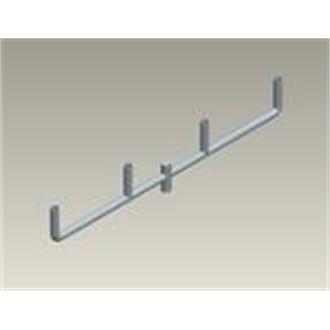

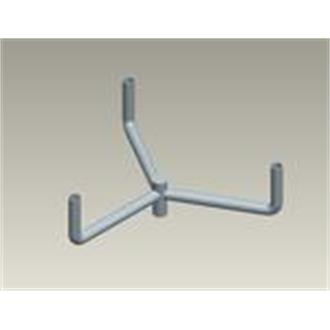

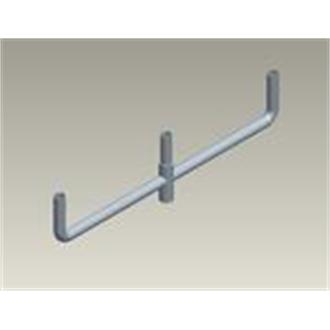

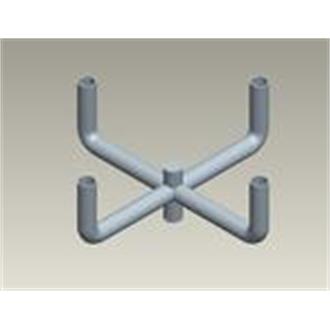

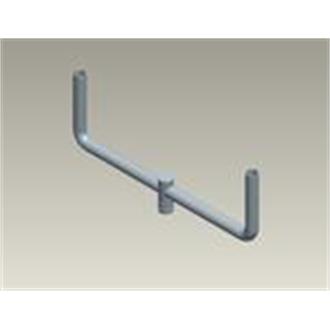

Document Type Description Updated View CAD 3D CAD DWG Steel bullhorn 2U bracket tall tenons 36IN wide spacing for use with vertical 8/5/2020 View Holophane DWGs ARM88 Steel bullhorn 2U bracket (2@180) 2-3/8in OD X 12in tall tn 36 inch spacing slip fits B04 4/18/2024 View Holophane DWGs ARM89 Steel bullhorn 3U bracket, 2- 3/8IN OD X 12IN tall tenons, 30IN spacing, for vert mnt fixture 4/18/2024 View Holophane DWGs ARM91 Steel bullhorn 3Y (3@120) 2-3/8 inch OD X 12 inch tall tenons slip fits B04 tenon 4/18/2024 View Holophane DWGs ARM93 Steel bullhorn 4 in line 2-3/8 inch OD X 12 inch tall tenons 30 inch spacing slip fits B04 tn 4/18/2024 View Holophane DWGs ARM94 Steel bullhorn 4 in line 2-3/8 inch OD X 12 inch tall tn 36 inch spacing slip fits B04 tn 4/18/2024 View Holophane DWGs ARM95 Steel bullhorn 4U (4@90), 2-3/8 inch OD X 12 inch tall tenons slip fits B04 tenon 4/18/2024 View Holophane DWGs ARM96 Steel bullhorn 4U (4@90) 2-3/8 inch OD X 12 inch tall tenons slip fits F06 tenon 4/18/2024 View Holophane DWGs BKT18 Steel bullhorn 2U bracket,2-3/8"ODX12"tall tn,36"space,for vert mt, 2" slip fit for B04 Tn 4/18/2024 View Holophane DWGs BKT19 Steel bullhorn 2U bracket, 2-3/8IN ODX 12IN tall tn,36IN wide spacing, use with vertical mt 4/18/2024 View Holophane DWGs BKT20 Steel bullhorn 3U bracket 2-3/8in OD X 12in tall tenons 30 inch wide spacing slip fits B04 tn 4/18/2024 View Holophane DWGs BKT24 Steel bullhorn 4 inline bracket, 2-3/8"ODX12"tall tn,30"space for vert mt, 2" slip fit B04 Tn 4/18/2024 View Holophane DWGs BKT28 Steel round sq bullhorn 2U brkt, 2-3/8IN OD X 4"tall tn,36IN space,vert mt fixt, 2.5IN C04 TN 4/18/2024 View Holophane DWGs BKT29 Steel round sq bullhorn 3U brkt(3@120),2-3/8IN OD X 4"tallX24"long tenon,vert mt ,2.5IN B04 TN 4/18/2024 View Holophane DWGs BKT30 Steel round square round bullhorn 4U bkt (4@90)2-3/8in ODX4 inch tallX24 inch long tn slip fit 4/18/2024 View Holophane DWGs BKT33 Steel round sq bullhorn,3inline brkt,2-3/8"ODX4"tall tnn,36INspace,vert mt,2.5" slipfit B04 TN 4/18/2024 View Holophane DWGs BKT34 Steel round sq bullhorn,4inline brkt,2-3/8"ODX4"tall tn,36IN space,vert mt,2.5" slipfit B04 TN 4/18/2024 View -
